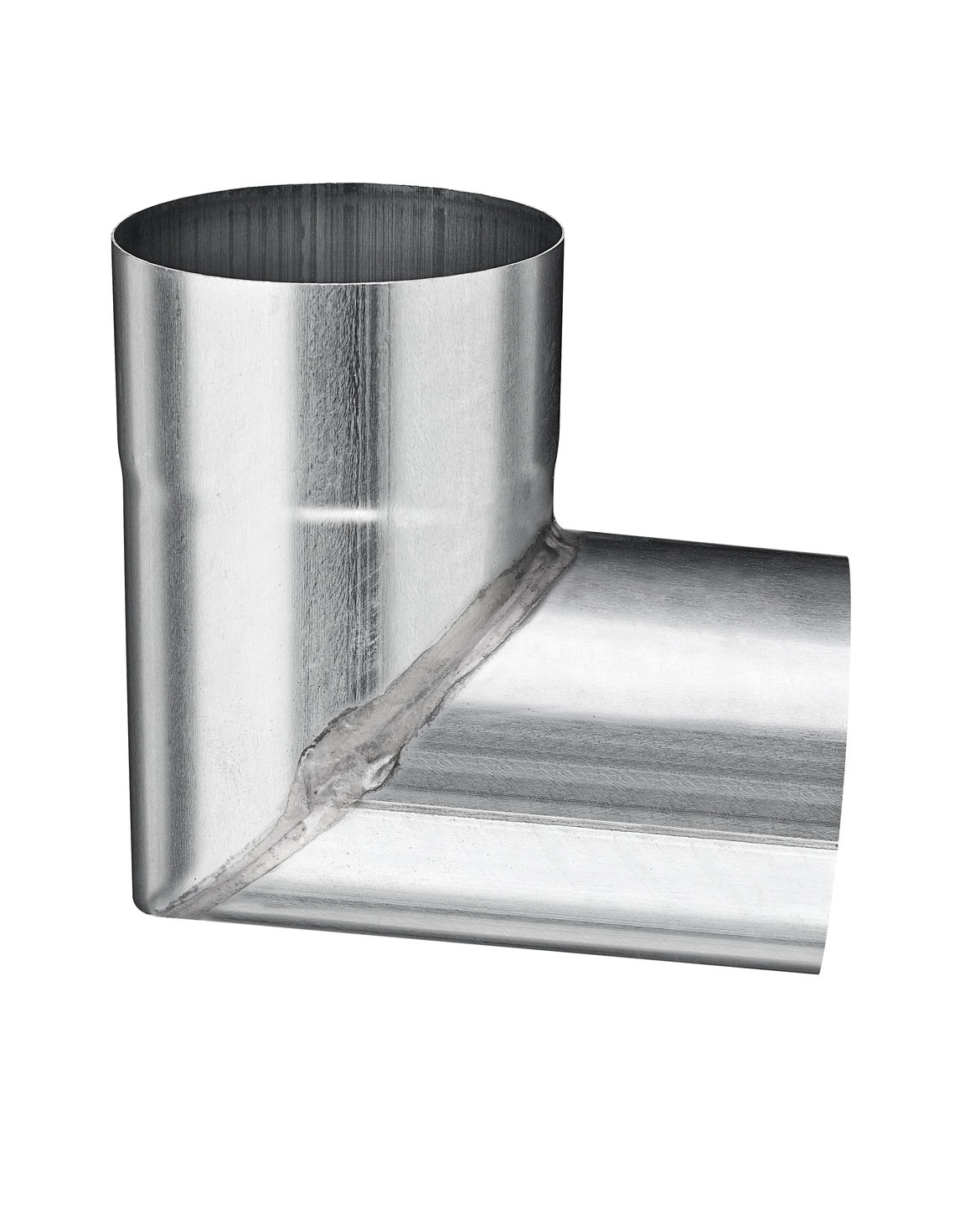

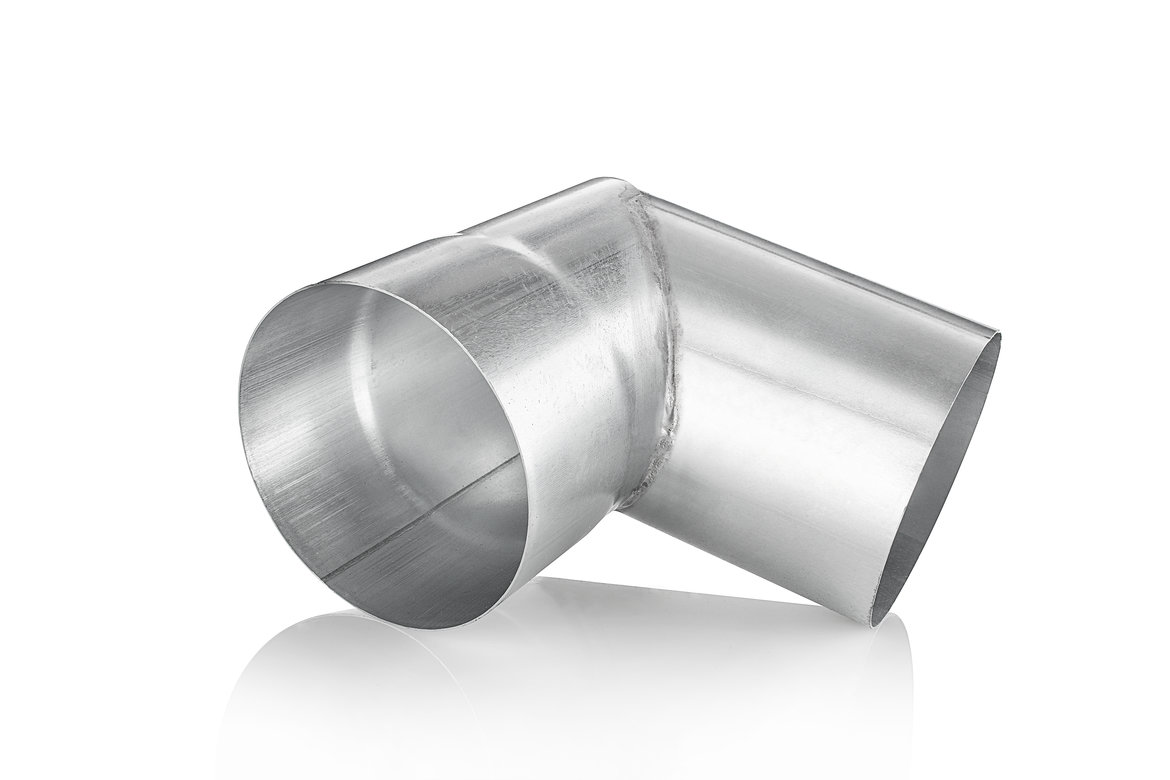

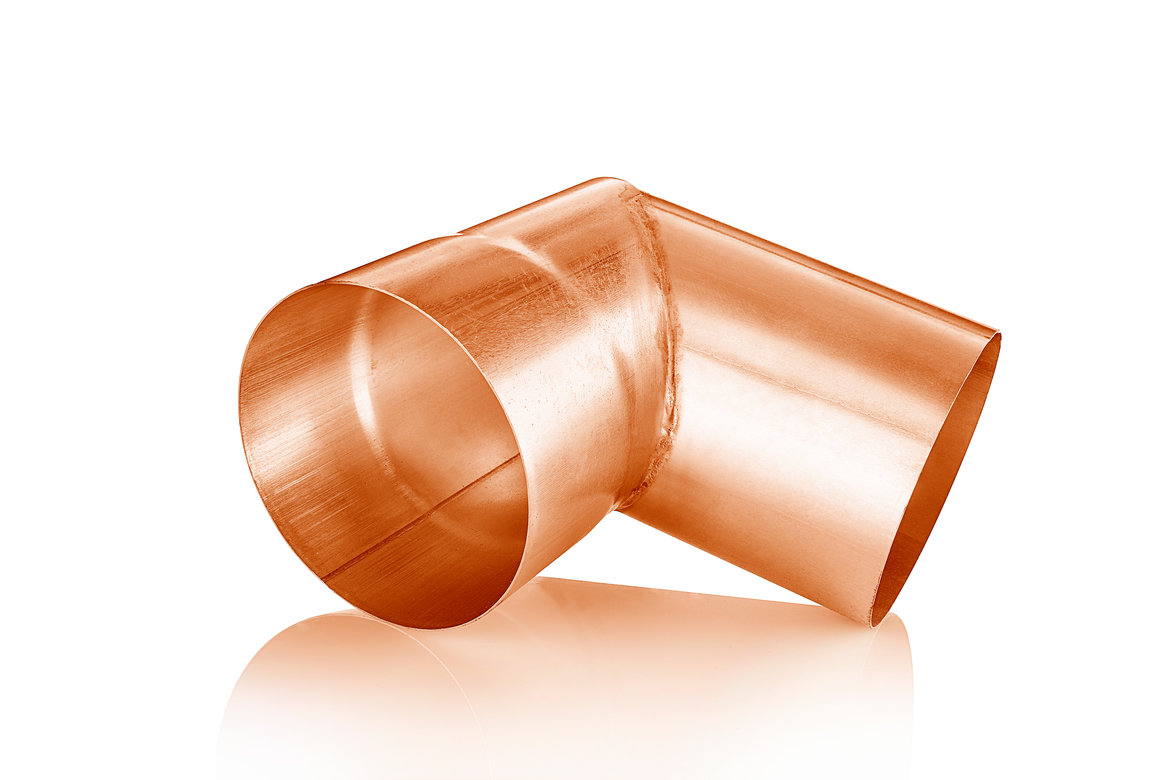

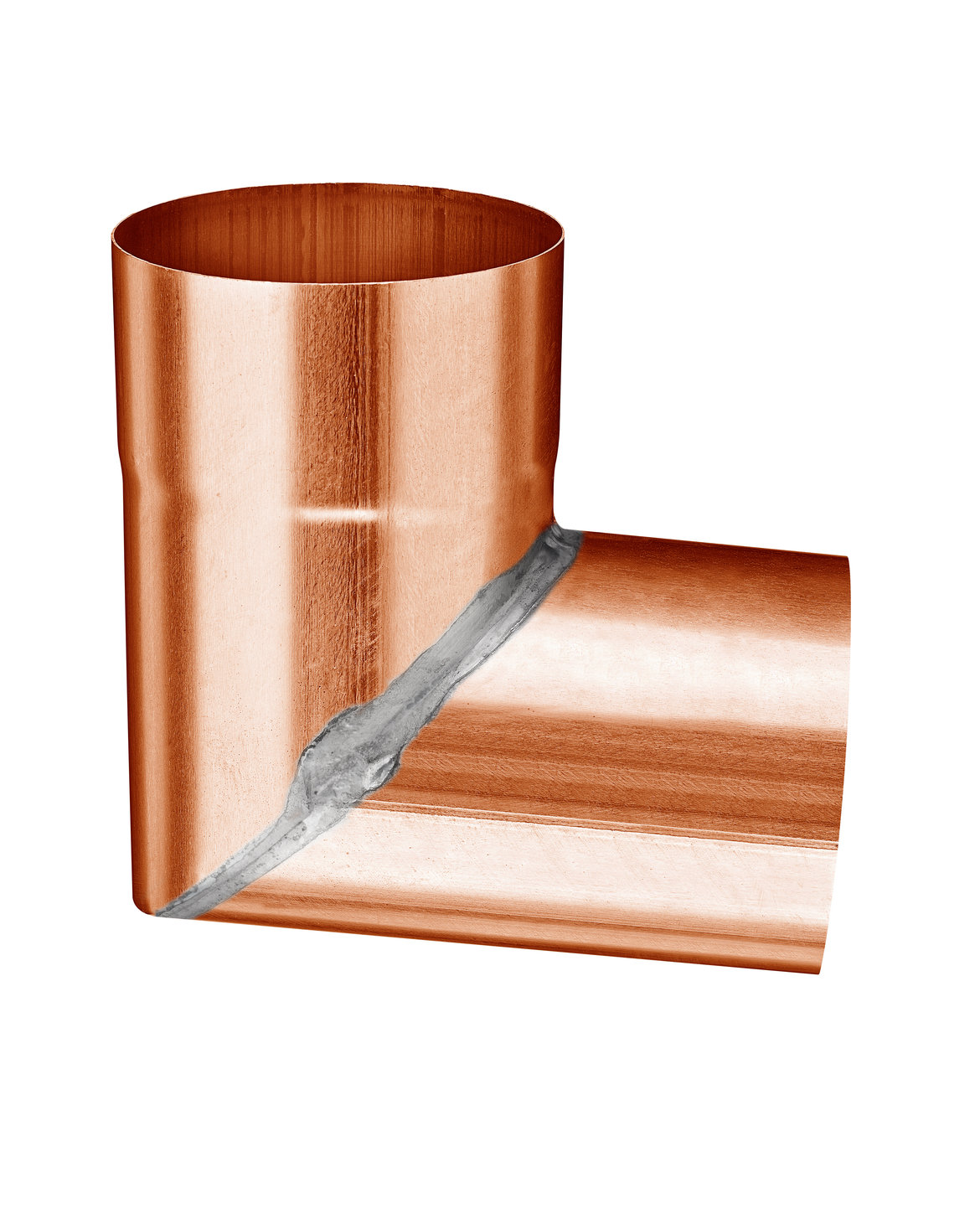

Pipe corner elbow 87°
The corner elbow for the extremely flat downpipe diverter. It guides rainwater safely and reliably into the downpipe.
Back to overview
| Material / Nominal Size |
|---|
| Zinc |
| Copper |
| Aluminium |
| 60 | 76 | 80 | 87 | 100 | 120 |
|---|---|---|---|---|---|
|
62215
GRÖMO Pipe corner elbow 87° Zinc (62215) Description: Pipe corner elbow 87° Material: Zinc Nominal size (mm): 60 Manufacturer: GRÖMO Article No.: 62215 Version: Soldered Drainage capacity (l/s): 2,7 Norm: DIN EN 612:2005-04 |
62216
GRÖMO Pipe corner elbow 87° Zinc (62216) Description: Pipe corner elbow 87° Material: Zinc Nominal size (mm): 76 Manufacturer: GRÖMO Article No.: 62216 Version: Soldered Drainage capacity (l/s): 5 Norm: DIN EN 612:2005-04 |
62217
GRÖMO Pipe corner elbow 87° Zinc (62217) Description: Pipe corner elbow 87° Material: Zinc Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 62217 Version: Soldered Drainage capacity (l/s): 5,8 Norm: DIN EN 612:2005-04 |
62218
GRÖMO Pipe corner elbow 87° Zinc (62218) Description: Pipe corner elbow 87° Material: Zinc Nominal size (mm): 87 Manufacturer: GRÖMO Article No.: 62218 Version: Soldered Drainage capacity (l/s): 7,2 Norm: DIN EN 612:2005-04 |
62219
GRÖMO Pipe corner elbow 87° Zinc (62219) Description: Pipe corner elbow 87° Material: Zinc Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 62219 Version: Soldered Drainage capacity (l/s): 10,5 Norm: DIN EN 612:2005-04 |
62220
GRÖMO Pipe corner elbow 87° Zinc (62220) Description: Pipe corner elbow 87° Material: Zinc Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 62220 Version: Soldered Drainage capacity (l/s): 17,1 Norm: DIN EN 612:2005-04 |
|
60215
GRÖMO Pipe corner elbow 87° Copper (60215) Description: Pipe corner elbow 87° Material: Copper Nominal size (mm): 60 Manufacturer: GRÖMO Article No.: 60215 Version: Soldered Drainage capacity (l/s): 2,7 Norm: DIN EN 612:2005-04 |
60216
GRÖMO Pipe corner elbow 87° Copper (60216) Description: Pipe corner elbow 87° Material: Copper Nominal size (mm): 76 Manufacturer: GRÖMO Article No.: 60216 Version: Soldered Drainage capacity (l/s): 5 Norm: DIN EN 612:2005-04 |
60217
GRÖMO Pipe corner elbow 87° Copper (60217) Description: Pipe corner elbow 87° Material: Copper Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 60217 Version: Soldered Drainage capacity (l/s): 5,8 Norm: DIN EN 612:2005-04 |
60218
GRÖMO Pipe corner elbow 87° Copper (60218) Description: Pipe corner elbow 87° Material: Copper Nominal size (mm): 87 Manufacturer: GRÖMO Article No.: 60218 Version: Soldered Drainage capacity (l/s): 7,2 Norm: DIN EN 612:2005-04 |
60219
GRÖMO Pipe corner elbow 87° Copper (60219) Description: Pipe corner elbow 87° Material: Copper Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 60219 Version: Soldered Drainage capacity (l/s): 10,5 Norm: DIN EN 612:2005-04 |
60220
GRÖMO Pipe corner elbow 87° Copper (60220) Description: Pipe corner elbow 87° Material: Copper Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 60220 Version: Soldered Drainage capacity (l/s): 17,1 Norm: DIN EN 612:2005-04 |
|
84392
GRÖMO Pipe corner elbow 87° Aluminium (84392) Description: Pipe corner elbow 87° Material: Aluminium Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 84392 Version: Soldered Drainage capacity (l/s): 5,8 Norm: DIN EN 612:2005-04 |
84394
GRÖMO Pipe corner elbow 87° Aluminium (84394) Description: Pipe corner elbow 87° Material: Aluminium Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 84394 Version: Soldered Drainage capacity (l/s): 10.500 Norm: DIN EN 612:2005-04 |
84395
GRÖMO Pipe corner elbow 87° Aluminium (84395) Description: Pipe corner elbow 87° Material: Aluminium Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 84395 Version: Soldered Drainage capacity (l/s): 17,1 Norm: DIN EN 612:2005-04 |
Soldered
