DUOFALZ metal sheet

The DUOFALZ metal sheets have been specially designed for use on the roof and in the façade. Alloy, coating and elasticity are optimised for use in sheet metal technology and guarantee the best possible results from processing.
DUOFALZ can be used on both sides and combines the two surfaces SX and TX in one product. DUOFALZ thus offers the greatest possible flexibility as well as a wide range of applications!

Back to overview

Show article numbers Hide article numbers Show TX articles Show SX articles

Material / Nominal Size	Surface
Anthracite	TX
Deep black	TX
	TX
Light grey	TX
White	TX
Testa di Moro	TX
Moss green	TX
Brick red	TX
Oxide red	TX

0,7x1000x2000	0,7x1000x3000
83291 ¹ DUOFALZ sheet metal - SX / TX - anthracite/anthracite Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83291 Material: Aluminium colour coated Colour: Anthracite (RAL 7016) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783	83951 ² DUOFALZ sheet metal - SX / TX - anthracite/anthracite Designation: DUOFALZ sheet metal 1000 x 3000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83291 Material: Aluminium colour coated Colour: Anthracite (RAL 7016) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783

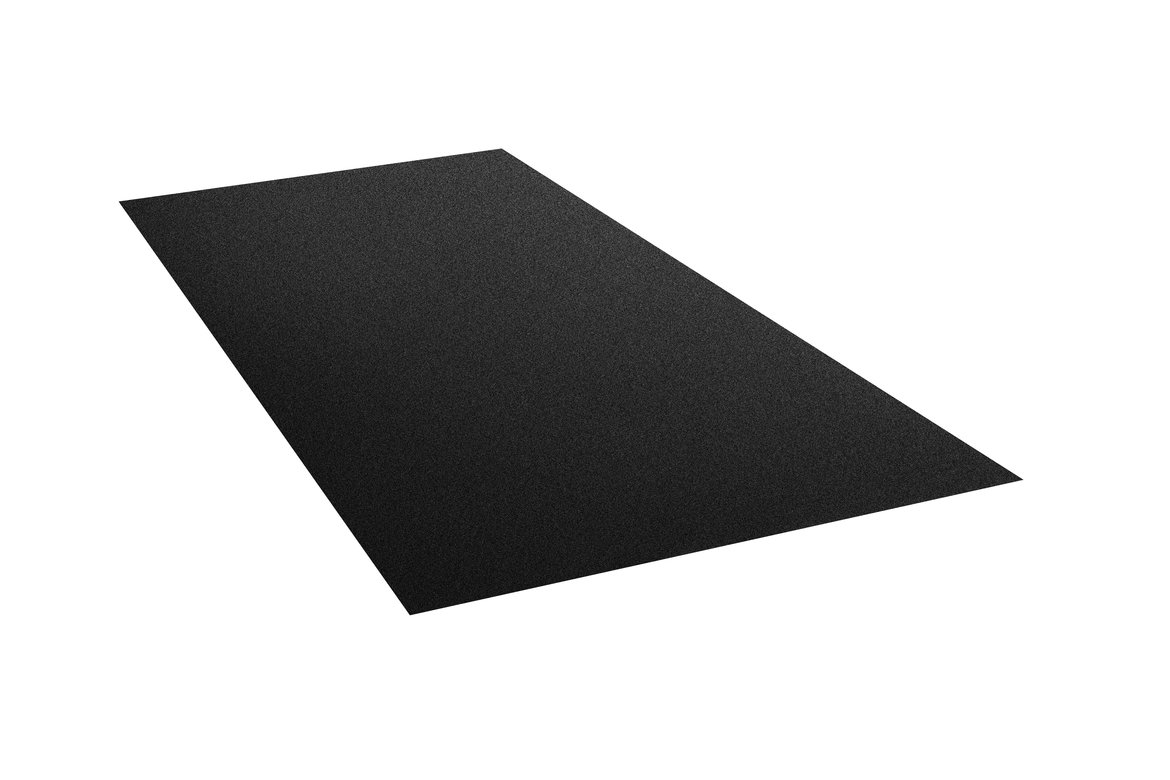

83298 ¹ DUOFALZ metal sheet SX / TX Deep black (83298) Description: Nominal size (mm): 0,7x1000x2000 Manufacturer: GRÖMO Article No.: 83298 Material: Coated aluminium Colour: Deep black (similar to RAL 9005) Surface: TX-surface (textured) / SX-surface (smooth) Version: Sheet size: 0.7 x 1000 x 2000 mm. With protective film on the SX side, One panel corresponds to approx. 4.05 kg, Material grade: EN AW 3005 H41 (fold quality Can be used on both sides. FRONT: TX coating, rear side: Same colour SX coating. Moss green and oxide red by request Make sure that the batches are the same and that they are laid in the same direction.	83958 ² DUOFALZ metal sheet SX / TX Deep black (83958) Description: Nominal size (mm): 0,7x1000x3000 Manufacturer: GRÖMO Article No.: 83958 Material: Coated aluminium Colour: Deep black (similar to RAL 9005) Surface: TX-surface (textured) / SX-surface (smooth) Version: Sheet size: 0.7 x 1000 x 3000 mm. With protective film on the SX side, One panel corresponds to approx. 6.08 kg, Material grade: EN AW 3005 H41 (fold quality Can be used on both sides. FRONT: TX coating, rear side: Same colour SX coating. Other colours on request. Make sure that the batches are the same and that they are laid in the same direction.

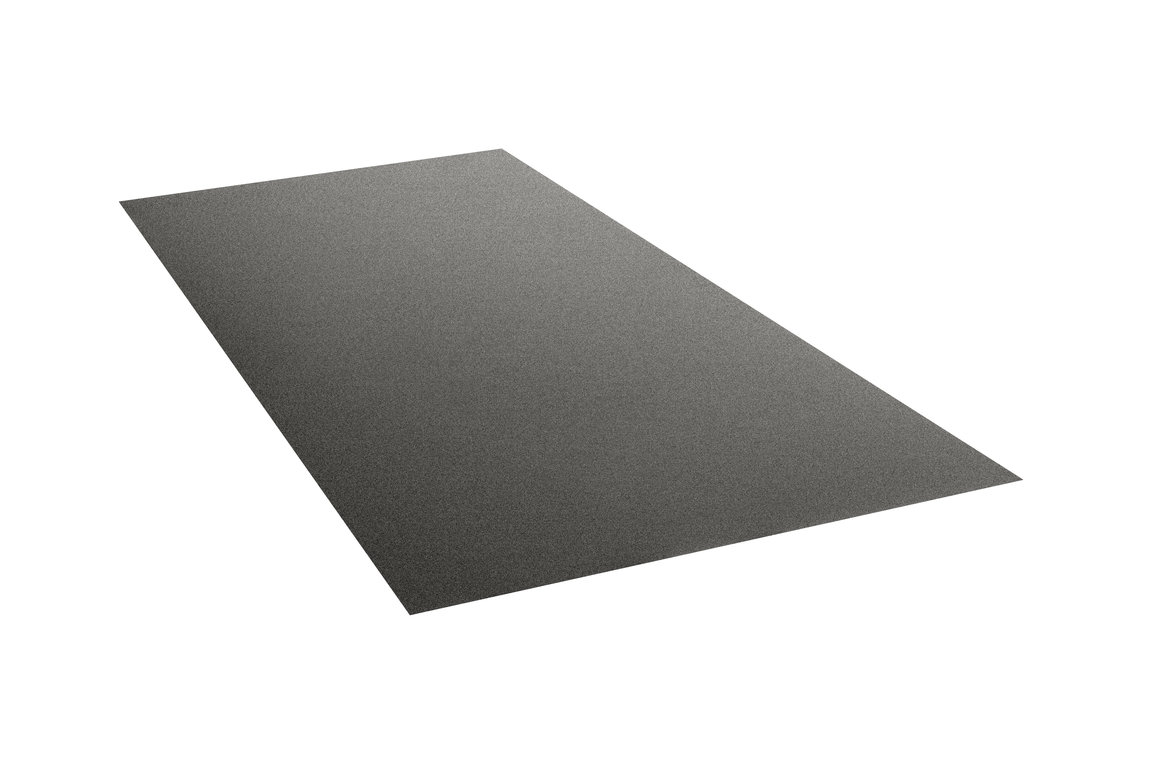

83299 DUOFALZ metal sheet SX / TX (83299) Description: Nominal size (mm): 0,7x1000x2000 Manufacturer: GRÖMO Article No.: 83299 Material: Aluminium beschichtet Dunkelgrau Colour: Surface: TX-surface (textured) / SX-surface (smooth)
83293 ¹ DUOFALZ sheet metal - SX / TX - light grey/light grey Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83293 Material: Aluminium colour coated Colour: Light grey (similar to RAL 7005) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83294 ¹ DUOFALZ sheet metal - SX / TX - white/white Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83294 Material: Aluminium colour coated Colour: White (similar to RAL 9002) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783	83954 ² DUOFALZ sheet metal - SX / TX - white/white Designation: DUOFALZ sheet metal 1000 x 3000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83952 Material: Aluminium colour coated Colour: White (similar to RAL 9002) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83292 ¹ DUOFALZ sheet metal - SX / TX - Testa di Moro / Testa di Moro Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83292 Material: Aluminium colour coated Colour: Testa di Moro (similar to RAL 8019) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83295 ¹ DUOFALZ sheet metal - SX / TX - moss green/moss green Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83295 Material: Aluminium colour coated Colour: Moss green (RAL 6005) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83296 ¹ DUOFALZ sheet metal - SX / TX - brick red/brick red Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83296 Material: Aluminium colour coated Colour: Brick red (similar to RAL 8004) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83297 ¹ DUOFALZ sheet metal - SX/TX - oxide red/oxide red Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83297 Material: Aluminium colour coated Colour: Oxyd red (RAL 3009) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783

Material / Nominal Size	Surface
Anthracite	SX
Deep black	SX
	SX
Light grey	SX
White	SX
Testa di Moro	SX
Moss green	SX
Brick red	SX
Oxide red	SX

0,7x1000x2000	0,7x1000x3000
83291 ¹ DUOFALZ sheet metal - SX / TX - anthracite/anthracite Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83291 Material: Aluminium colour coated Colour: Anthracite (RAL 7016) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783	83951 ² DUOFALZ sheet metal - SX / TX - anthracite/anthracite Designation: DUOFALZ sheet metal 1000 x 3000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83291 Material: Aluminium colour coated Colour: Anthracite (RAL 7016) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83298 ¹ DUOFALZ metal sheet SX / TX Deep black (83298) Description: Nominal size (mm): 0,7x1000x2000 Manufacturer: GRÖMO Article No.: 83298 Material: Coated aluminium Colour: Deep black (similar to RAL 9005) Surface: TX-surface (textured) / SX-surface (smooth) Version: Sheet size: 0.7 x 1000 x 2000 mm. With protective film on the SX side, One panel corresponds to approx. 4.05 kg, Material grade: EN AW 3005 H41 (fold quality Can be used on both sides. FRONT: TX coating, rear side: Same colour SX coating. Moss green and oxide red by request Make sure that the batches are the same and that they are laid in the same direction.	83958 ² DUOFALZ metal sheet SX / TX Deep black (83958) Description: Nominal size (mm): 0,7x1000x3000 Manufacturer: GRÖMO Article No.: 83958 Material: Coated aluminium Colour: Deep black (similar to RAL 9005) Surface: TX-surface (textured) / SX-surface (smooth) Version: Sheet size: 0.7 x 1000 x 3000 mm. With protective film on the SX side, One panel corresponds to approx. 6.08 kg, Material grade: EN AW 3005 H41 (fold quality Can be used on both sides. FRONT: TX coating, rear side: Same colour SX coating. Other colours on request. Make sure that the batches are the same and that they are laid in the same direction.
83299 DUOFALZ metal sheet SX / TX (83299) Description: Nominal size (mm): 0,7x1000x2000 Manufacturer: GRÖMO Article No.: 83299 Material: Aluminium beschichtet Dunkelgrau Colour: Surface: TX-surface (textured) / SX-surface (smooth)
83293 ¹ DUOFALZ sheet metal - SX / TX - light grey/light grey Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83293 Material: Aluminium colour coated Colour: Light grey (similar to RAL 7005) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83294 ¹ DUOFALZ sheet metal - SX / TX - white/white Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83294 Material: Aluminium colour coated Colour: White (similar to RAL 9002) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783	83954 ² DUOFALZ sheet metal - SX / TX - white/white Designation: DUOFALZ sheet metal 1000 x 3000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83952 Material: Aluminium colour coated Colour: White (similar to RAL 9002) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83292 ¹ DUOFALZ sheet metal - SX / TX - Testa di Moro / Testa di Moro Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83292 Material: Aluminium colour coated Colour: Testa di Moro (similar to RAL 8019) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83295 ¹ DUOFALZ sheet metal - SX / TX - moss green/moss green Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83295 Material: Aluminium colour coated Colour: Moss green (RAL 6005) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83296 ¹ DUOFALZ sheet metal - SX / TX - brick red/brick red Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83296 Material: Aluminium colour coated Colour: Brick red (similar to RAL 8004) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783
83297 ¹ DUOFALZ sheet metal - SX/TX - oxide red/oxide red Designation: DUOFALZ sheet metal 1000 x 2000 mm Material thickness: 0.70 mm Weight: 1,89 kg/m2 Article no: 83297 Material: Aluminium colour coated Colour: Oxyd red (RAL 3009) Surface: Can be used on both sides Front side: TX coating (VHDPE) High-quality TX two-layer baked lacquering 30µm structured Backside: SX coating Polyester lacquer 25µm smooth With protective film on the SX side Application: Specially developed for roof and façade Coloured aluminium strip in rebate quality H 41 Material grade: EN AW 3005 (AlMn1Mg0.5) Observe laying direction Observe batch uniformity Guarantee: 40 years (on substrate and and colour coating) Fire behaviour class A1 according to EN 14783

Ask question about product Technical data sheet Construction detail DXF Construction detail DWG ZVDH Zert Green Building Text for invitation to tender

Product photo may deviate slightly from actual product in individual cases.
Technical specs subject to change.
