Design rainwater pipe flap with tip seal

Size: 100
Material:

The design rainwater pipe flap ensures that it looks classic on the house. The built-in tip seal makes it easier to open, and the easily removable sieve facilitates easy cleaning. next

Rainwater pipe flap with stainless steel sieve

Size: 76 / 80 / 87 / 100 / 120
Material:
Not available in all sizes

The rainwater pipe flap’s pleasing appearance and reliable functionality make it a compelling choice: The flap is opened over the recessed grip in the outlet. The water is then guided safely and surely into the rain barrel. The integrated leaf guard prevents contaminations from getting into the rain barrel or downpipe. It’s easy to remove and clean. next

Rainwater pipe flap

Size: 60 / 76 / 80 / 87 / 100 / 120
Material:
Not available in all sizes

The rainwater pipe flap’s pleasing appearance and reliable functionality make it a compelling choice. The water is guided safely and reliably into the adjacent rainwater barrel. next

Rainwater pipe flap with handle and sieve

Size: 80 / 87 / 100 / 120
Material:
Not available in all sizes

The rainwater pipe flap’s pleasing appearance and reliable functionality make it a compelling choice: The water is guided safely and surely into the rain barrel. The integrated leaf guard prevents contaminations from getting into the rain barrel or downpipe. It’s easy to remove and clean. next

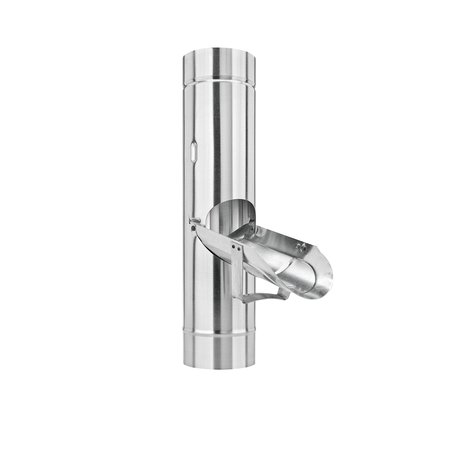

Rainwater pipe flap with handle

Size: 76 / 80 / 100 / 120
Material:
Not available in all sizes

The rainwater pipe flap with handle’s pleasing appearance and reliable functionality make it a compelling choice: The water is guided safely and surely into the rain barrel. next

Rainwater pipe flap ball - automatic

Size: 76 / 80 / 87 / 100 / 120
Material:

The rainwater pipe flap make it easier to collect water. As soon as the rain barrel is full, the flap automatically closes. This can prevent the barrel from running over. next

Rainwater pipe flap square

Size: 100/100 / 80/80
Material:

The rainwater pipe flap’s pleasing appearance and reliable functionality make it a compelling choice: The water is guided safely and surely into the rain barrel. next

Rainwater pipe flaps from GRÖMO – Attention: detour.

The right flap for every requirement.

With a rainwater pipe flap, also called a downpipe flap or rain pipe flap, can divert rainwater out of the downpipe and into a rain barrel when opened. If the flap is closed, the water continues to flow towards the sewer system. Rainwater pipe flaps from GRÖMO are available in different sizes - matching the size of the downpipe, of course. The flap can also be adjusted to the rest of the system depending on the material of the rain gutter and downpipe. Whether zinc, pre-weathered zinc, copper, galvanized steel, Uginox Patina K41, stainless steel, or aluminum, everything is possible in terms of material. The rainwater flap can also be fitted with a built-in sieve, optionally, which allows the accumulating dirt to be filtered in the sieve when the rain barrel is full, and then removed when it opens. You can choose between the “normal” design, the flap with ball, and the designer rainwater pipe flap.



Two ways lead into the pipe.

The flap is relatively easy and quick to install. There are two options for installation:

  1.  Installation done in parallel with attaching a new drainpipe. In this scenario, the downpipe is prepared so that the flap, as described in the installation instructions, can be stuck on the right spot in the rainwater downpipe.

  2.  The rainwater pipe flap is retrofitted in the existing downpipe. A piece is removed from the downpipe for this scenario. The flap is easily inserted into this hole. Due to the wider internal diameter of the flap at the upper end and the smaller diameter on the lower side, the overlaps are designed so that they are stuck in the direction of flow of the rainwater.



Just tap the flap.

Have you always wanted a rainwater pipe flap that doesn’t just divert rainwater, but can also enhance the beauty of your facade? Then this is the one for you: The designer rainwater flap from GRÖMO. The first piece in the designer line, it received the reddot Design Award when it was in the prototype stage. Then came the if Design Award, and nomination for the German Design Award.

But its merits, and not just its awards, are what make it impressive.

  • Tip seal
    With a gentle touch, the designer rainwater pipe flap can be conveniently opened and the installed sieve can be easily removed.

  • Removable sieve
    Easy cleaning is guaranteed by effortlessly pulling out the sieve.

  • Dazzling year-round
    The designer rainwater pipe flap is frost-resistant and does not need to be taken down. The sieve just has to be removed during the winter months to prevent freezing over.

  • Premium materials
    The designer rainwater pipe flap is available in zinc, pre-weathered zinc, copper, Uginox Patina K41, and aluminum. Thanks to the top-quality materials, they resist the most severe weather and remain dimensionally stable and neat.
