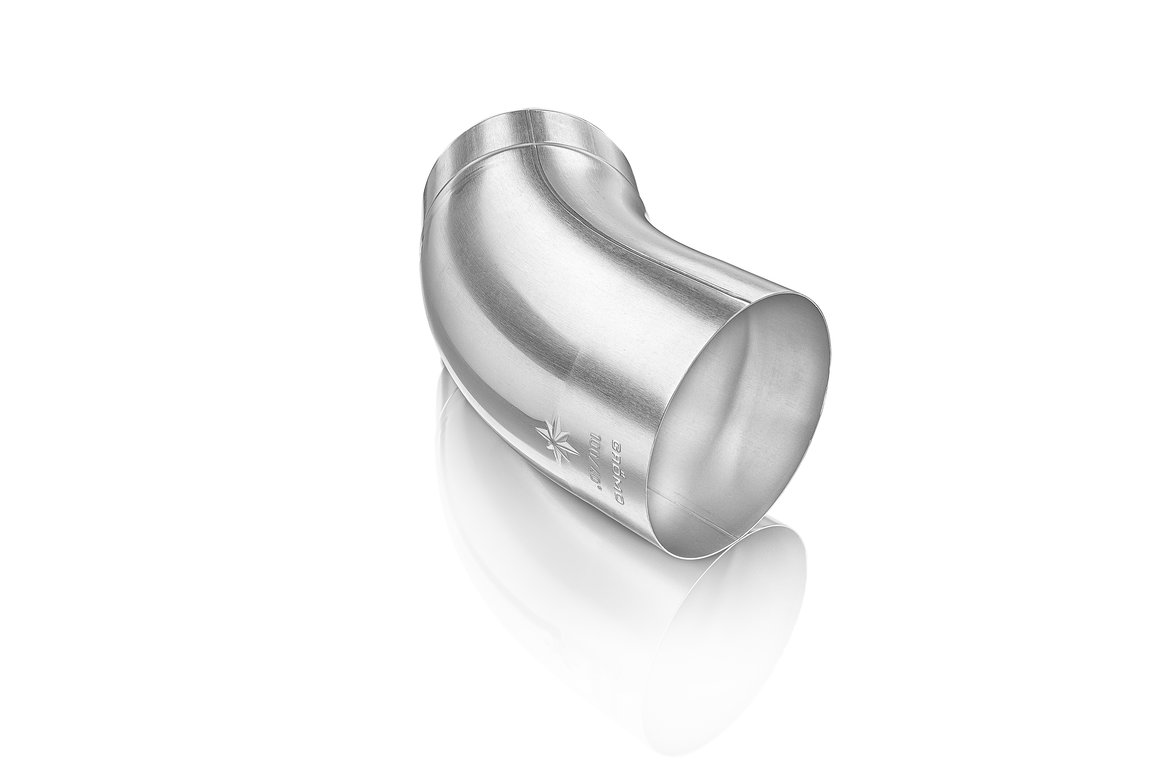

Pipe elbow 40°

The conical pipe elbow with indent saves downpipes from flaring. It can easily be plugged into any cut pipe, with or without a socket joint. It doesn’t get more flexible than that. The Grömo pipe elbow is also visually appealing with its socketless, conical shape.

Back to overview

Show article numbers Hide article numbers

Material / Nominal Size
Zinc
quartz-zinc
anthra-zinc
Copper
Galvanised steel

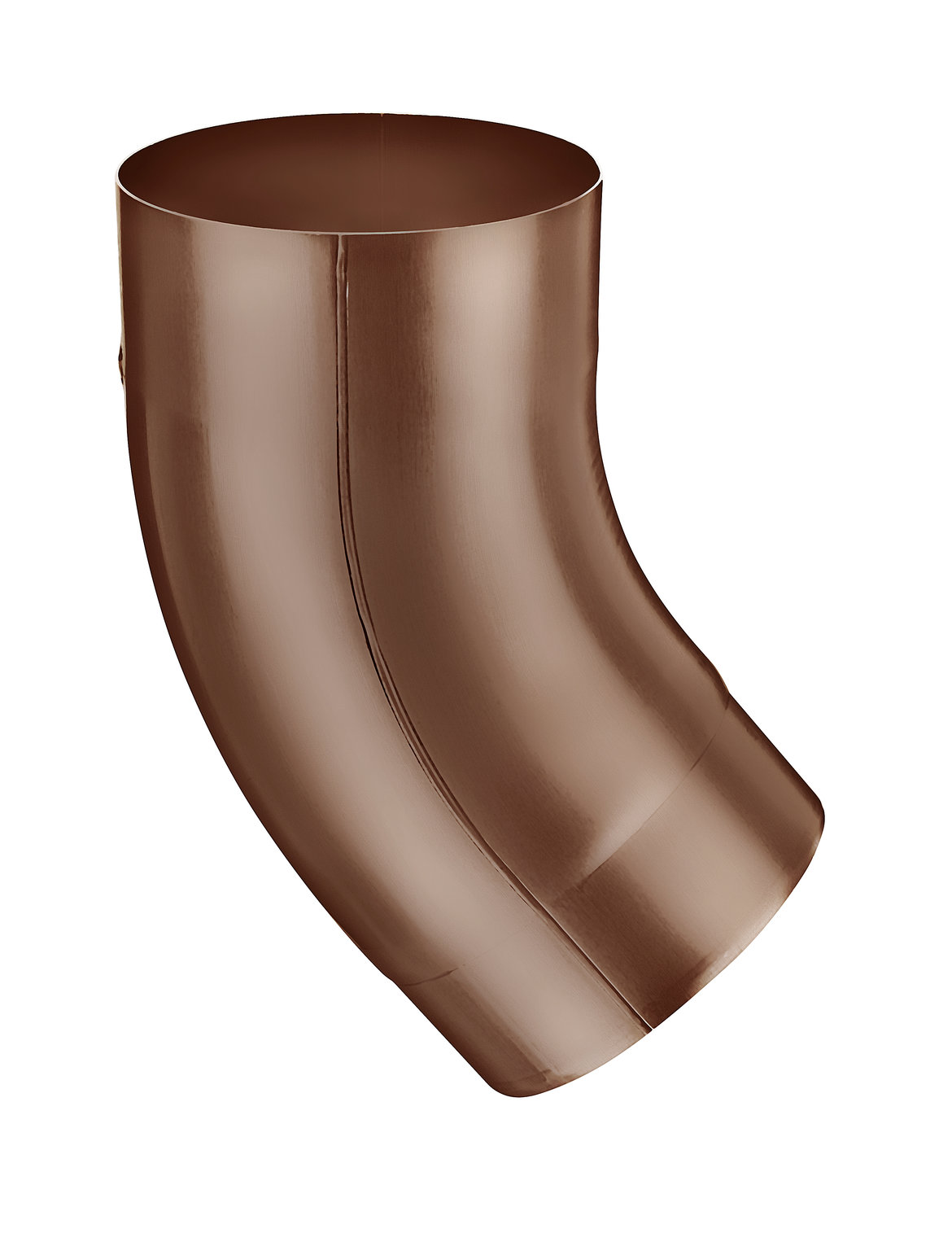

Testa di Moro
UGINOX Patina K41
UGINOX Top 304
Aluminium

60	76	80	87	100	120
62006 ³ GRÖMO Pipe elbow 40° Zinc (62006) Description: Pipe elbow 40° Material: Zinc Nominal size (mm): 60 Manufacturer: GRÖMO Article No.: 62006 Version: Roll seam welded, without indent Drainage capacity (l/s): 2.7 Norm: DIN EN 612:2005-04	62009 ¹ GRÖMO Pipe elbow 40° Zinc (62009) Description: Pipe elbow 40° Material: Zinc Nominal size (mm): 76 Manufacturer: GRÖMO Article No.: 62009 Version: Butt welded with indent Drainage capacity (l/s): 5.2 Norm: DIN EN 612:2005-04	62010 ¹ GRÖMO Pipe elbow 40° Zinc (62010) Description: Pipe elbow 40° Material: Zinc Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 62010 Version: Butt welded with indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04	62017 ¹ GRÖMO Pipe elbow 40° Zinc (62017) Description: Pipe elbow 40° Material: Zinc Nominal size (mm): 87 Manufacturer: GRÖMO Article No.: 62017 Version: Butt welded with indent Drainage capacity (l/s): 7.4 Norm: DIN EN 612:2005-04	62020 ¹ GRÖMO Pipe elbow 40° Zinc (62020) Description: Pipe elbow 40° Material: Zinc Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 62020 Version: Butt welded with indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04	62022 ¹ GRÖMO Pipe elbow 40° Zinc (62022) Description: Pipe elbow 40° Material: Zinc Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 62022 Version: Butt welded with indent Drainage capacity (l/s): 17.4 Norm: DIN EN 612:2005-04

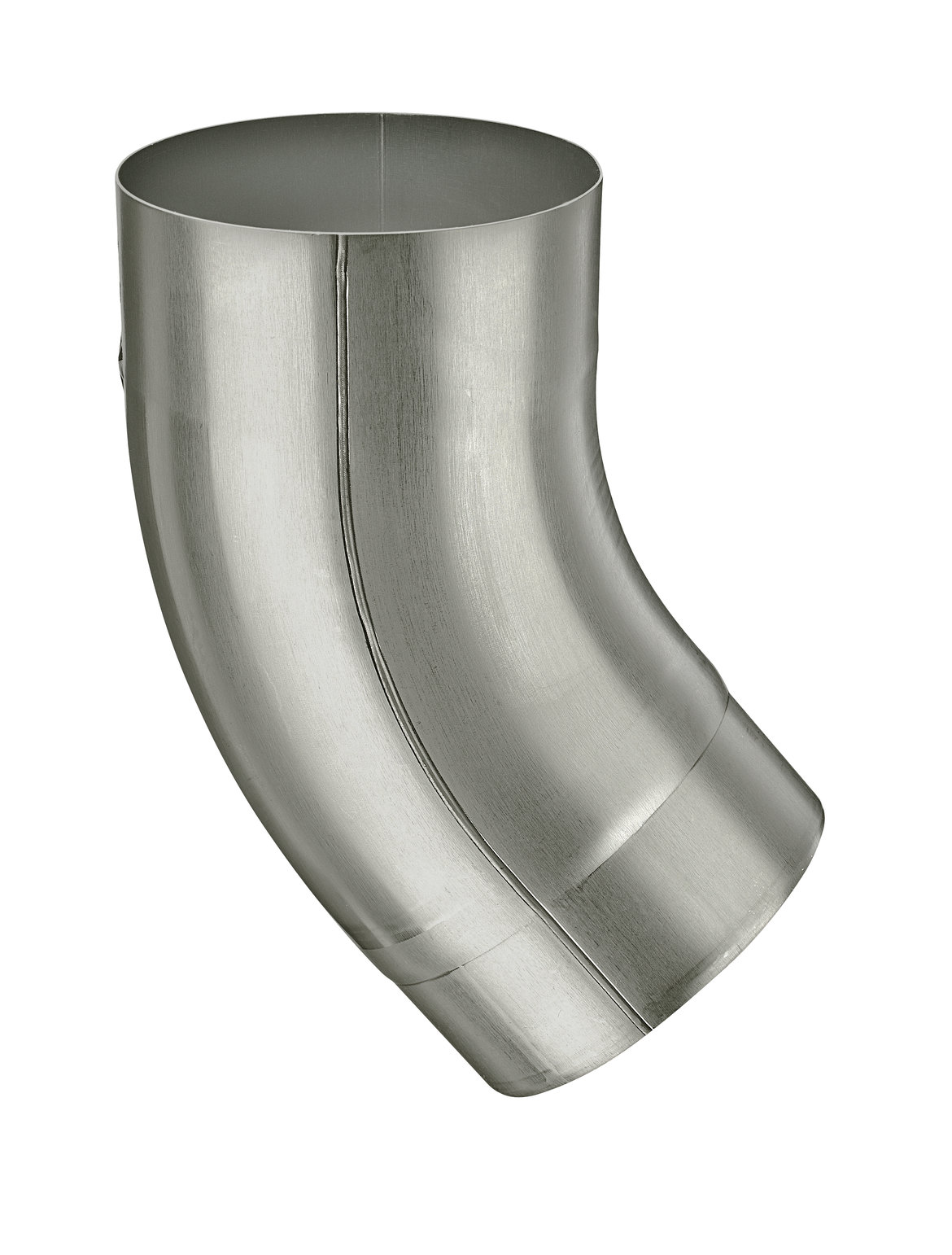

		66010 ¹ GRÖMO Pipe elbow 40° quartz-zinc (66010) Description: Pipe elbow 40° Material: quartz-zinc Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 66010 Version: Butt welded with indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04		66020 ¹ GRÖMO Pipe elbow 40° quartz-zinc (66020) Description: Pipe elbow 40° Material: quartz-zinc Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 66020 Version: Butt welded with indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04	66022 ¹ GRÖMO Pipe elbow 40° quartz-zinc (66022) Description: Pipe elbow 40° Material: quartz-zinc Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 66022 Version: Butt welded with indent Drainage capacity (l/s): 17.4 Norm: DIN EN 612:2005-04

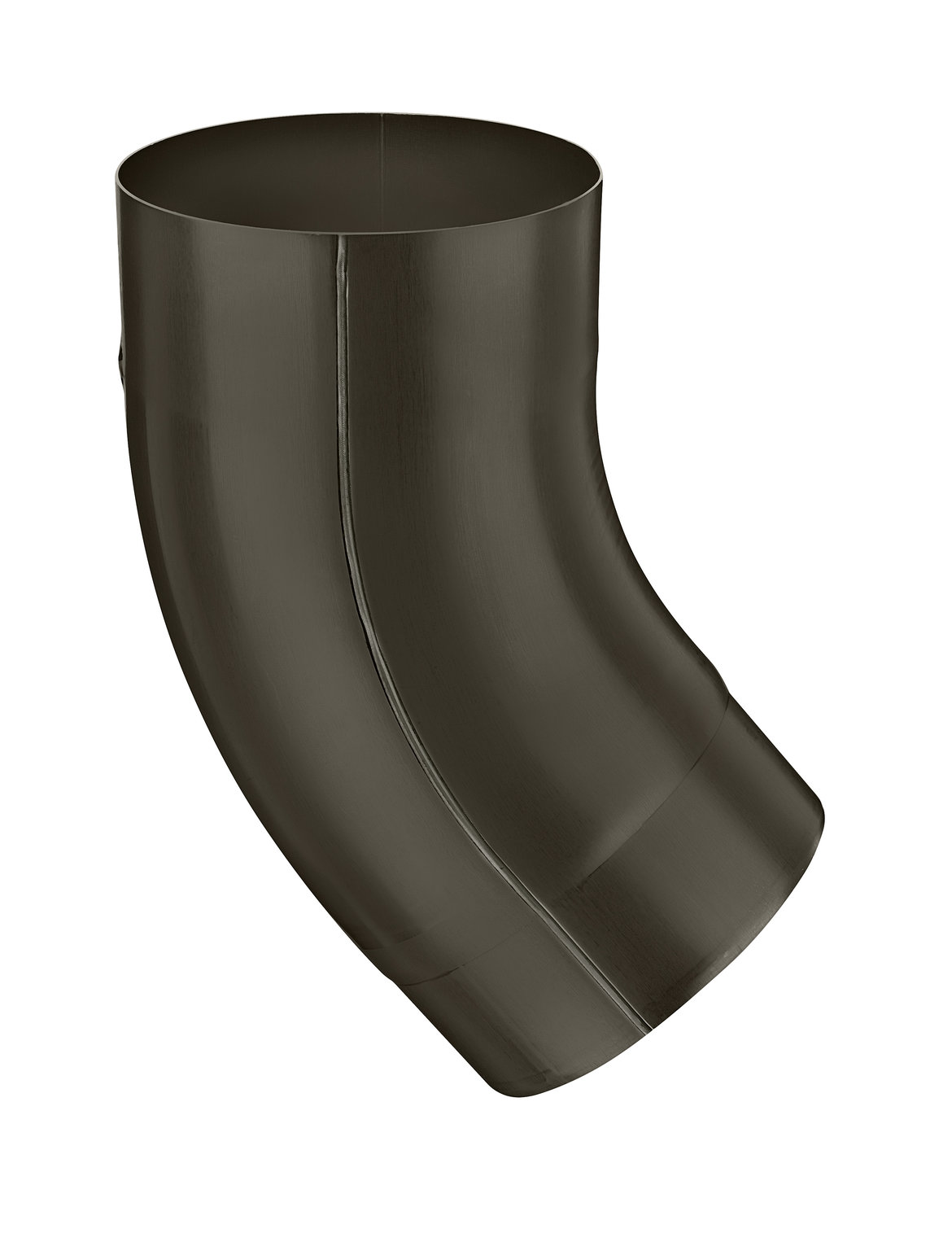

		67010 ¹ GRÖMO Pipe elbow 40° anthra-zinc (67010) Description: Pipe elbow 40° Material: anthra-zinc Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 67010 Version: Butt welded with indent		67020 ¹ GRÖMO Pipe elbow 40° anthra-zinc (67020) Description: Pipe elbow 40° Material: anthra-zinc Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 67020 Version: Butt welded with indent

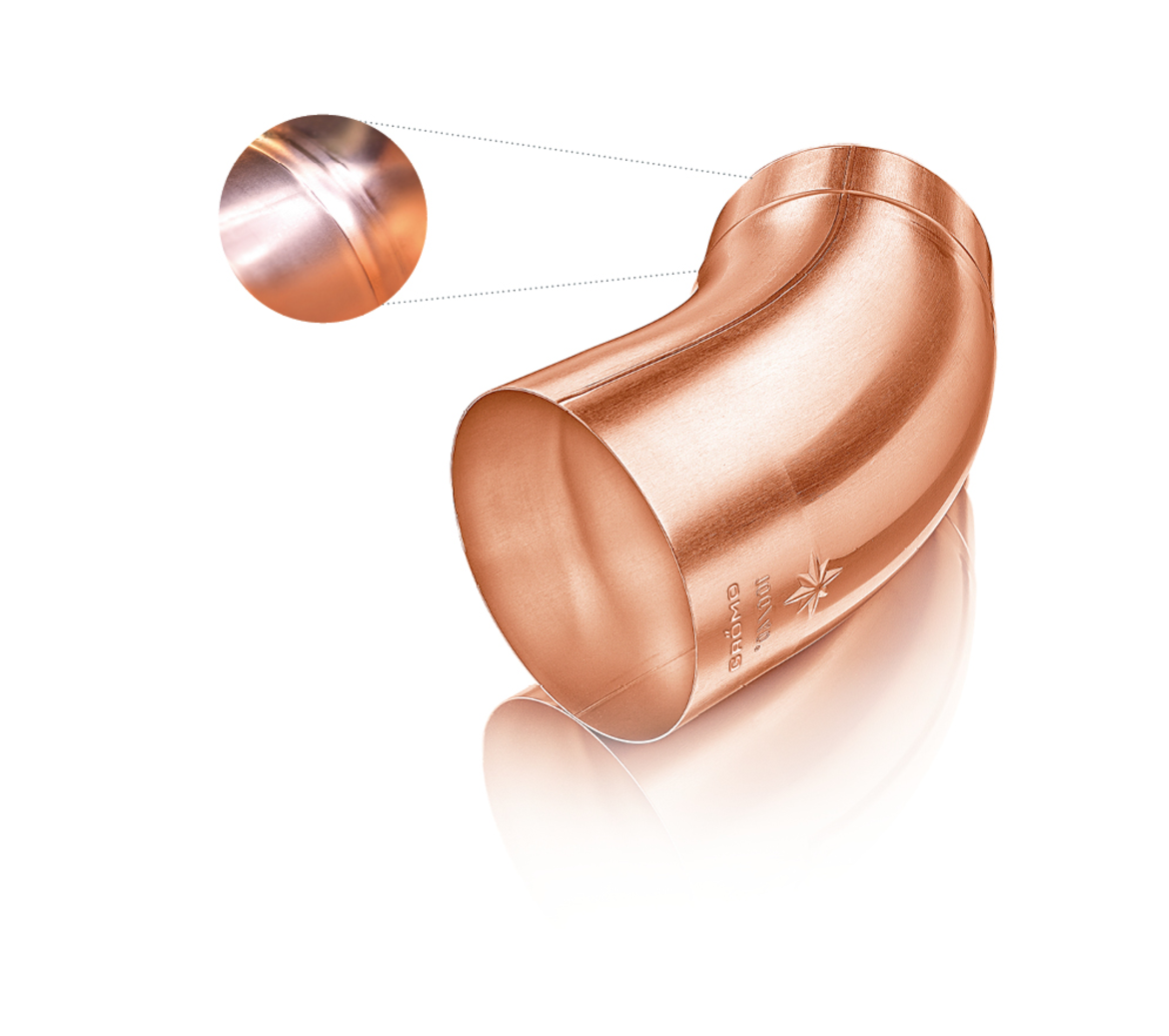

60006 ³ GRÖMO Pipe elbow 40° Copper (60006) Description: Pipe elbow 40° Material: Copper Nominal size (mm): 60 Manufacturer: GRÖMO Article No.: 60006 Version: Roll seam welded, without indent Drainage capacity (l/s): 2.7 Norm: DIN EN 612:2005-04	60009 ¹ GRÖMO Pipe elbow 40° Copper (60009) Description: Pipe elbow 40° Material: Copper Nominal size (mm): 76 Manufacturer: GRÖMO Article No.: 60009 Version: Butt welded with indent Drainage capacity (l/s): 5.2 Norm: DIN EN 612:2005-04	60010 ¹ GRÖMO Pipe elbow 40° Copper (60010) Description: Pipe elbow 40° Material: Copper Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 60010 Version: Butt welded with indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04	60017 ¹ GRÖMO Pipe elbow 40° Copper (60017) Description: Pipe elbow 40° Material: Copper Nominal size (mm): 87 Manufacturer: GRÖMO Article No.: 60017 Version: Butt welded with indent Drainage capacity (l/s): 7.4 Norm: DIN EN 612:2005-04	60020 ¹ GRÖMO Pipe elbow 40° Copper (60020) Description: Pipe elbow 40° Material: Copper Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 60020 Version: Butt welded with indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04	60022 ¹ GRÖMO Pipe elbow 40° Copper (60022) Description: Pipe elbow 40° Material: Copper Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 60022 Version: Butt welded with indent Drainage capacity (l/s): 17.4 Norm: DIN EN 612:2005-04
		50010 ¹ GRÖMO Pipe elbow 40° Galvanised steel (50010) Description: Pipe elbow 40° Material: Galvanised steel Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 50010 Version: Butt welded with indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04		50020 ¹ GRÖMO Pipe elbow 40° Galvanised steel (50020) Description: Pipe elbow 40° Material: Galvanised steel Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 50020 Version: Butt welded with indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04	50022 ¹ GRÖMO Pipe elbow 40° Galvanised steel (50022) Description: Pipe elbow 40° Material: Galvanised steel Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 50022 Version: Butt welded with indent Drainage capacity (l/s): 17.4 Norm: DIN EN 612:2005-04
		53010 ¹ GRÖMO Pipe elbow 40° Galvanised steel (53010) Description: Pipe elbow 40° Material: Galvanised steel Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 53010 Version: Butt welded with indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04		53020 ¹ GRÖMO Pipe elbow 40° Galvanised steel (53020) Description: Pipe elbow 40° Material: Galvanised steel Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 53020 Version: Butt welded with indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04	53022 ¹ GRÖMO Pipe elbow 40° Galvanised steel (53022) Description: Pipe elbow 40° Material: Galvanised steel Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 53022 Version: Butt welded with indent Drainage capacity (l/s): 17.4 Norm: DIN EN 612:2005-04
56006 ³ GRÖMO Pipe elbow 40° UGINOX Patina K41 (56006) Description: Pipe elbow 40° Material: UGINOX Patina K41 Nominal size (mm): 60 Manufacturer: GRÖMO Article No.: 56006 Version: Roll seam welded, without indent Drainage capacity (l/s): 2.7 Norm: DIN EN 612:2005-04		56010 ³ GRÖMO Pipe elbow 40° UGINOX Patina K41 (56010) Description: Pipe elbow 40° Material: UGINOX Patina K41 Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 56010 Version: Roll seam welded, without indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04		56020 ³ GRÖMO Pipe elbow 40° UGINOX Patina K41 (56020) Description: Pipe elbow 40° Material: UGINOX Patina K41 Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 56020 Version: Roll seam welded, without indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04	56022 ³ GRÖMO Pipe elbow 40° UGINOX Patina K41 (56022) Description: Pipe elbow 40° Material: UGINOX Patina K41 Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 56022 Version: Roll seam welded, without indent Drainage capacity (l/s): 17.4 Norm: DIN EN 612:2005-04
		58010 ² GRÖMO Pipe elbow 40° UGINOX Top 304 (58010) Description: Pipe elbow 40° Material: UGINOX Top 304 Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 58010 Version: Butt-welded, without indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04		58020 ² GRÖMO Pipe elbow 40° UGINOX Top 304 (58020) Description: Pipe elbow 40° Material: UGINOX Top 304 Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 58020 Version: Butt-welded, without indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04
84006 ³ GRÖMO Pipe elbow 40° Aluminium (84006) Description: Pipe elbow 40° Material: Aluminium Nominal size (mm): 60 Manufacturer: GRÖMO Article No.: 84006 Version: Roll seam welded, without indent Drainage capacity (l/s): 2.7 Norm: DIN EN 612:2005-04		84010 ¹ GRÖMO Pipe elbow 40° Aluminium (84010) Description: Pipe elbow 40° Material: Aluminium Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 84010 Version: Butt welded with indent Drainage capacity (l/s): 5.9 Norm: DIN EN 612:2005-04	84017 ¹ GRÖMO Pipe elbow 40° Aluminium (84017) Description: Pipe elbow 40° Material: Aluminium Nominal size (mm): 87 Manufacturer: GRÖMO Article No.: 84017 Version: Butt welded with indent Drainage capacity (l/s): 7.4 Norm: DIN EN 612:2005-04	84020 ¹ GRÖMO Pipe elbow 40° Aluminium (84020) Description: Pipe elbow 40° Material: Aluminium Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 84020 Version: Butt welded with indent Drainage capacity (l/s): 10.7 Norm: DIN EN 612:2005-04	84022 ¹ GRÖMO Pipe elbow 40° Aluminium (84022) Description: Pipe elbow 40° Material: Aluminium Nominal size (mm): 120 Manufacturer: GRÖMO Article No.: 84022 Version: Butt welded with indent Drainage capacity (l/s): 17.4 Norm: DIN EN 612:2005-04

¹ Butt welded with indent
² Butt-welded, without indent
³ Roll seam welded, without indent

Ask question about product 3D - view Product video Product brochures Assembly instruction Technical data sheet ZVDH Zert Green Building Text for invitation to tender

Product photo may deviate slightly from actual product in individual cases.
Technical specs subject to change.
