Diagonal outlet conical outlet - half round gutter
The diagonal outlet has an installation angle of 40°. The conical outlet conveys even large quantities of water safely and reliably. With the conical downpipe diverter, a pleasing appearance and safe drainage are guaranteed.
Back to overview
| Material / Nominal Size |
|---|
| Zinc |
| Copper |
| Galvanised steel |
| UGINOX Patina K41 |
| 280/118 | 333/139 | 400/169 |
|---|---|---|
|
62594

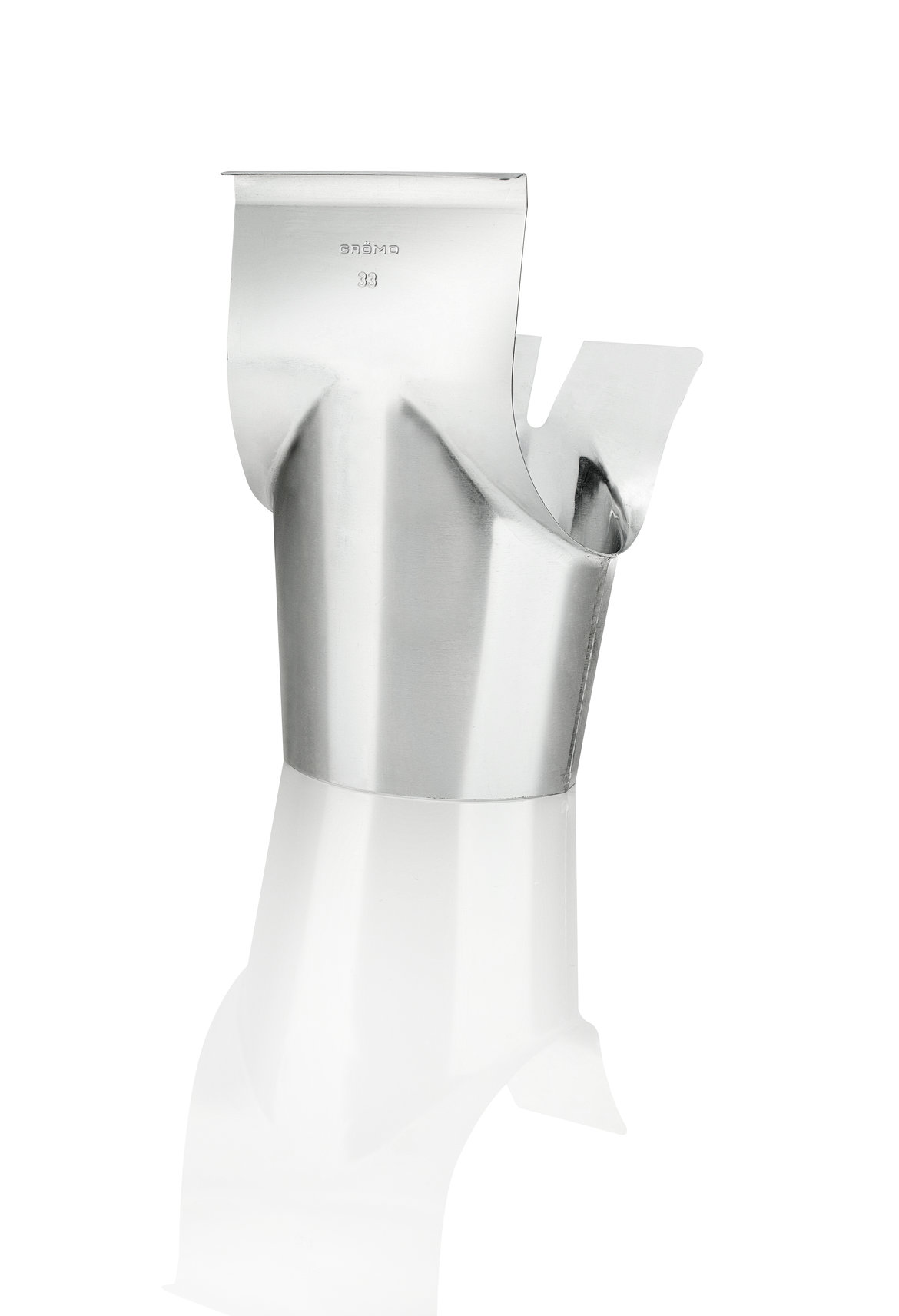

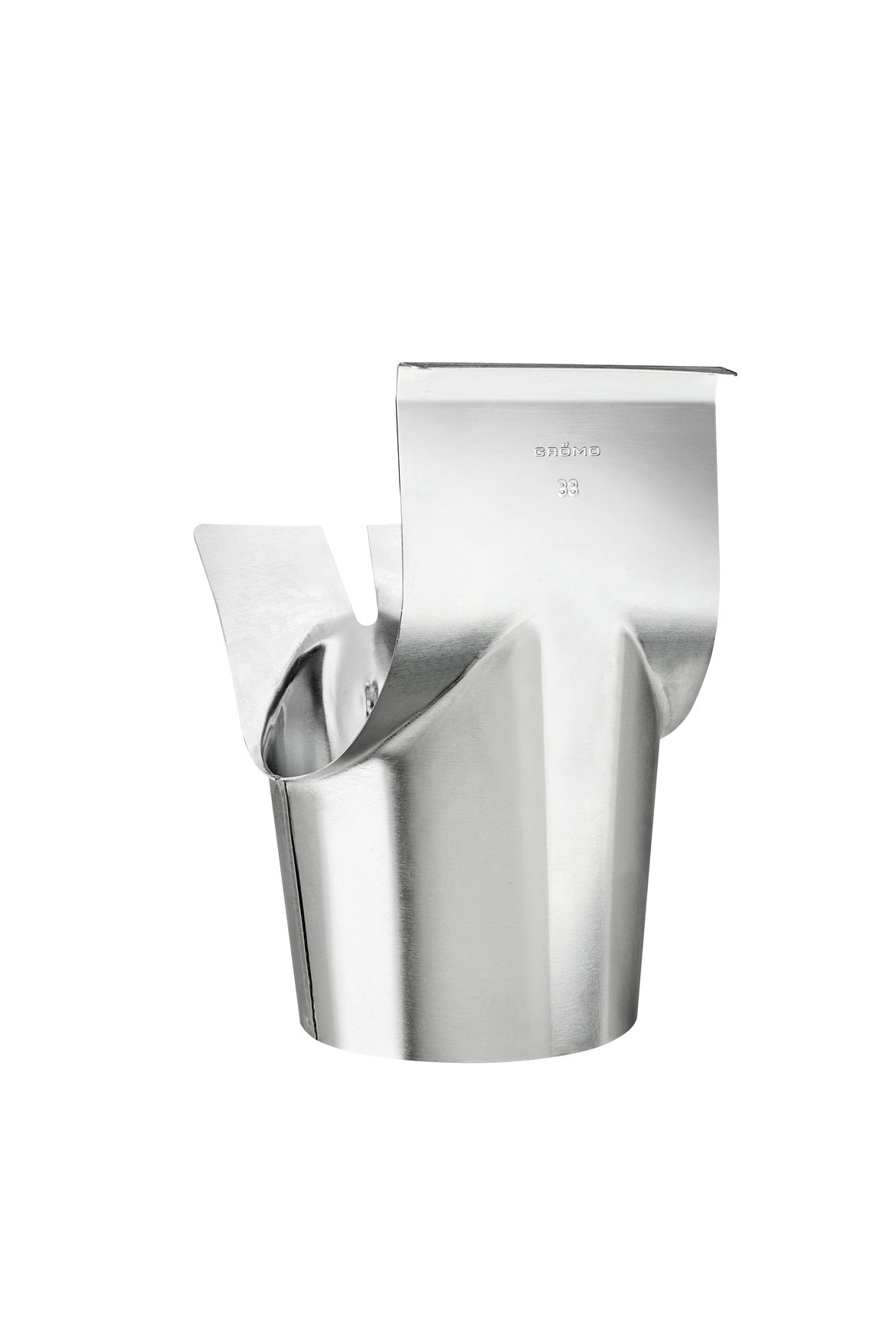

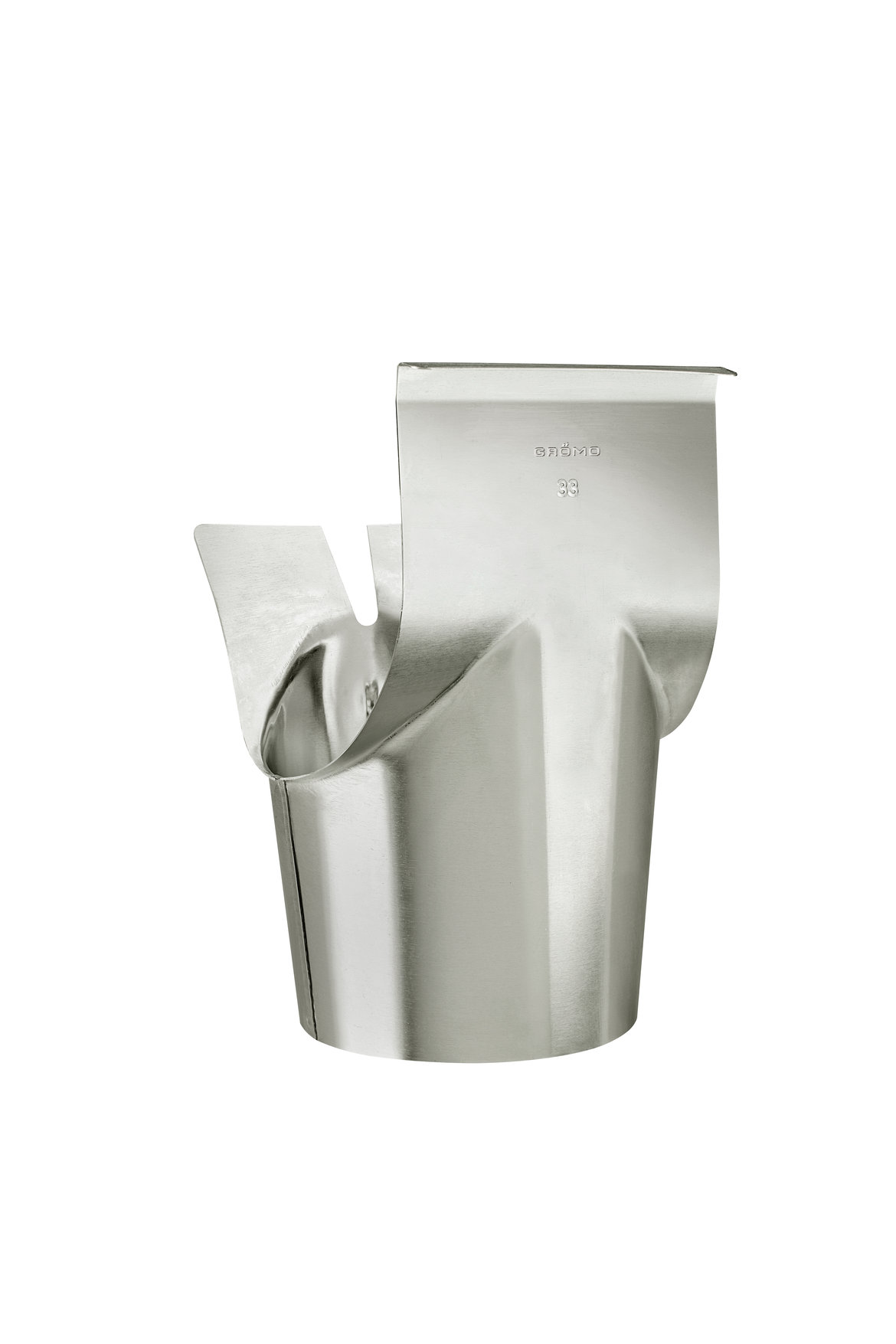

GRÖMO Diagonal outlet conical outlet - half round gutter Zinc (62594) Description: Diagonal outlet conical outlet - half round gutter Material: Zinc Nominal size (mm): 280/118 Manufacturer: GRÖMO Article No.: 62594 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 4 Norm: DIN EN 612:2005-04 |
62596
GRÖMO Diagonal outlet conical outlet - half round gutter Zinc (62596) Description: Diagonal outlet conical outlet - half round gutter Material: Zinc Nominal size (mm): 333/139 Manufacturer: GRÖMO Article No.: 62596 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 6.4 Norm: DIN EN 612:2005-04 |
62598
GRÖMO Diagonal outlet conical outlet - half round gutter Zinc (62598) Description: Diagonal outlet conical outlet - half round gutter Material: Zinc Nominal size (mm): 400/169 Manufacturer: GRÖMO Article No.: 62598 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Norm: DIN EN 612:2005-04 |
|
60594

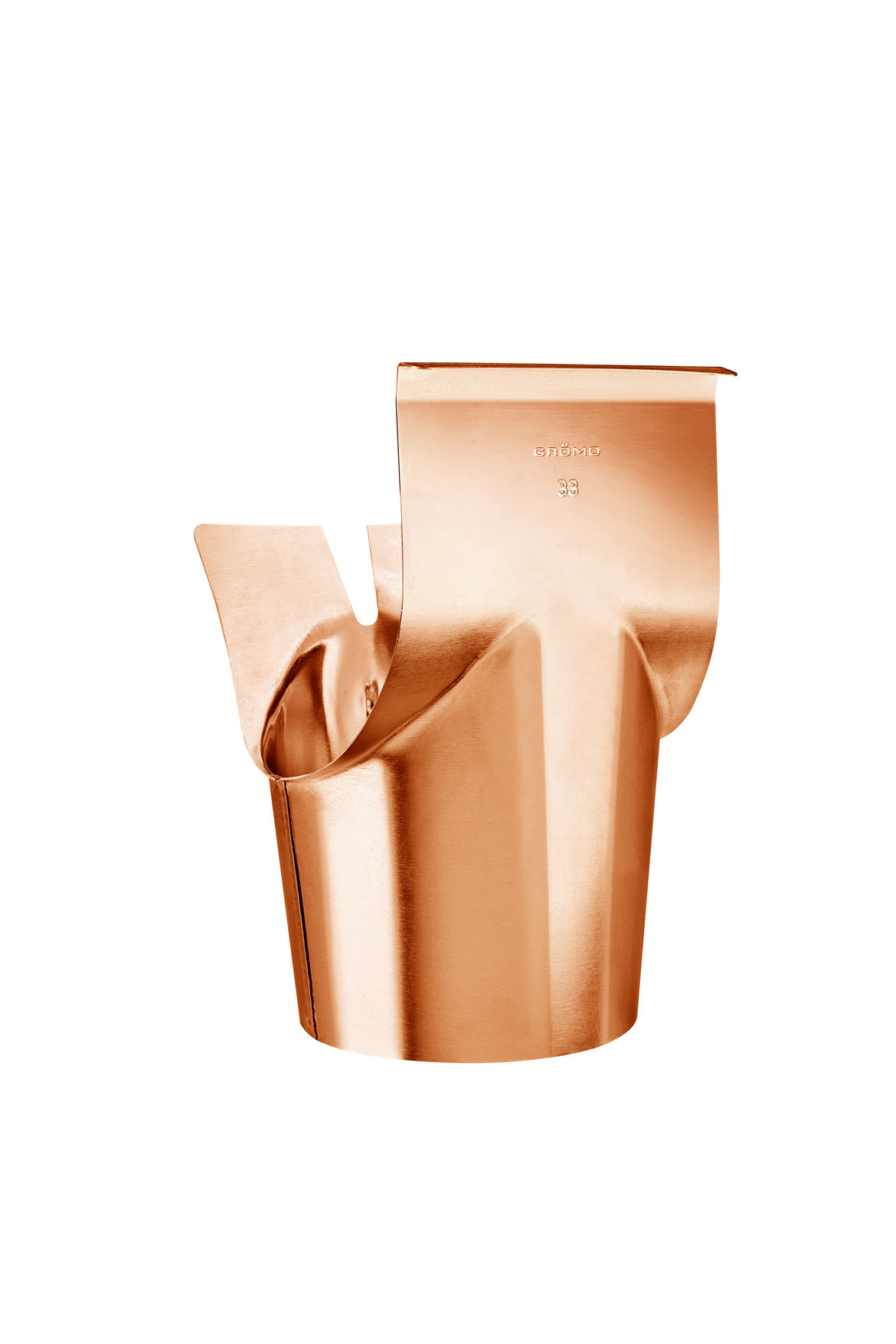

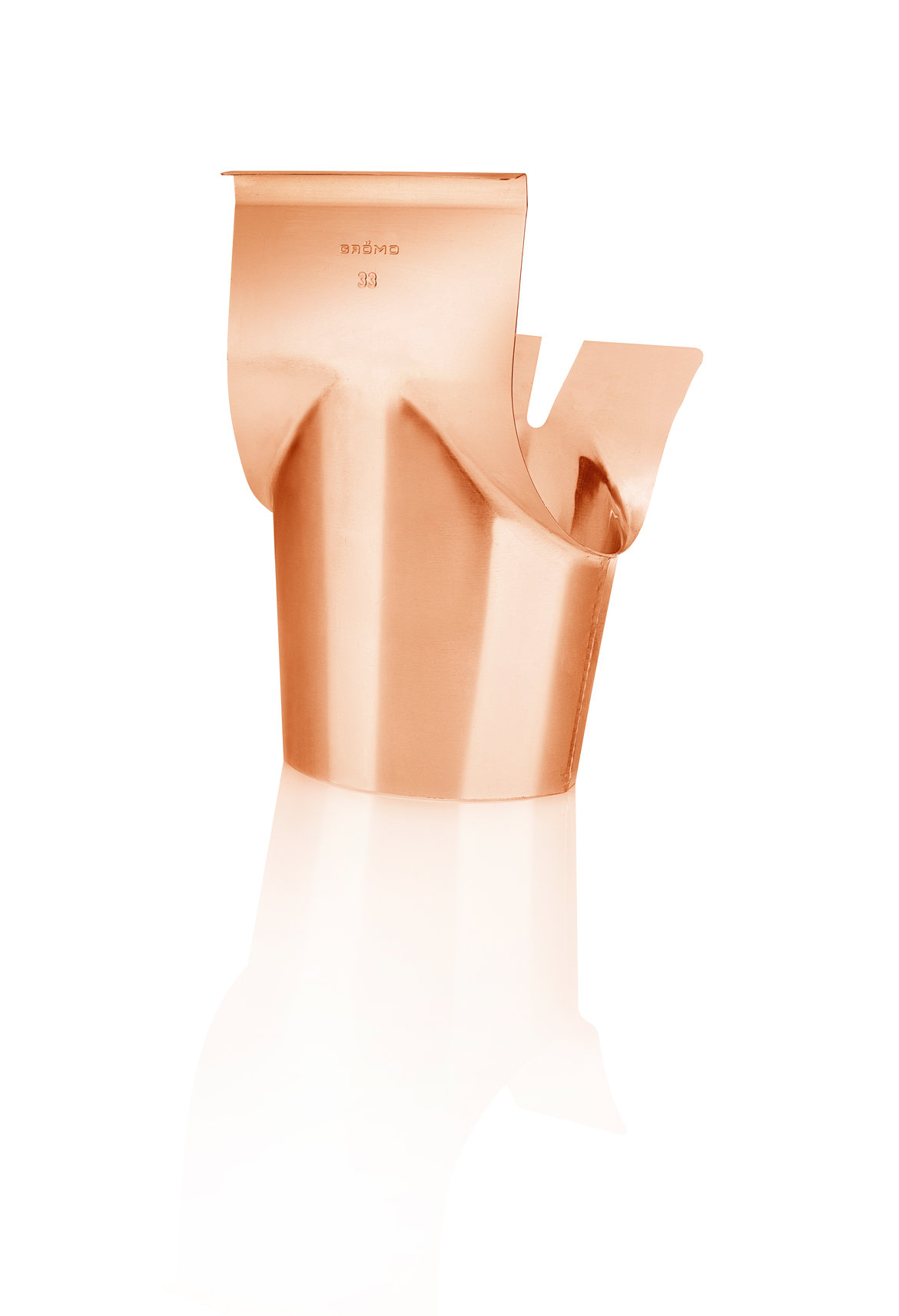

GRÖMO Diagonal outlet conical outlet - half round gutter Copper (60594) Description: Diagonal outlet conical outlet - half round gutter Material: Copper Nominal size (mm): 280/118 Manufacturer: GRÖMO Article No.: 60594 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 4 Norm: DIN EN 612:2005-04 |
60596
GRÖMO Diagonal outlet conical outlet - half round gutter Copper (60596) Description: Diagonal outlet conical outlet - half round gutter Material: Copper Nominal size (mm): 333/139 Manufacturer: GRÖMO Article No.: 60596 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 6.4 Norm: DIN EN 612:2005-04 |
60598
GRÖMO Diagonal outlet conical outlet - half round gutter Copper (60598) Description: Diagonal outlet conical outlet - half round gutter Material: Copper Nominal size (mm): 400/169 Manufacturer: GRÖMO Article No.: 60598 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Norm: DIN EN 612:2005-04 |
|
50594
GRÖMO Diagonal outlet conical outlet - half round gutter Galvanised steel
(50594) Description: Diagonal outlet conical outlet - half round gutter Material: Galvanised steel Nominal size (mm): 280/118 Manufacturer: GRÖMO Article No.: 50594 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 4 Norm: DIN EN 612:2005-04 |
50596
GRÖMO Diagonal outlet conical outlet - half round gutter Galvanised steel
(50596) Description: Diagonal outlet conical outlet - half round gutter Material: Galvanised steel Nominal size (mm): 333/139 Manufacturer: GRÖMO Article No.: 50596 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 6.4 Norm: DIN EN 612:2005-04 |
|
|
56594
GRÖMO Diagonal outlet conical outlet - half round gutter UGINOX Patina K41
(56594) Description: Diagonal outlet conical outlet - half round gutter Material: UGINOX Patina K41 Nominal size (mm): 280/118 Manufacturer: GRÖMO Article No.: 56594 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 4 Norm: DIN EN 612:2005-04 |
56596
GRÖMO Diagonal outlet conical outlet - half round gutter UGINOX Patina K41
(56596) Description: Diagonal outlet conical outlet - half round gutter Material: UGINOX Patina K41 Nominal size (mm): 333/139 Manufacturer: GRÖMO Article No.: 56596 Version: Angle of inclination 40°, with loop for hooking in, roll seam welded Drainage capacity (l/s): 6.4 Norm: DIN EN 612:2005-04 |
Angle of inclination 40°, with loop for hooking in, roll seam welded
