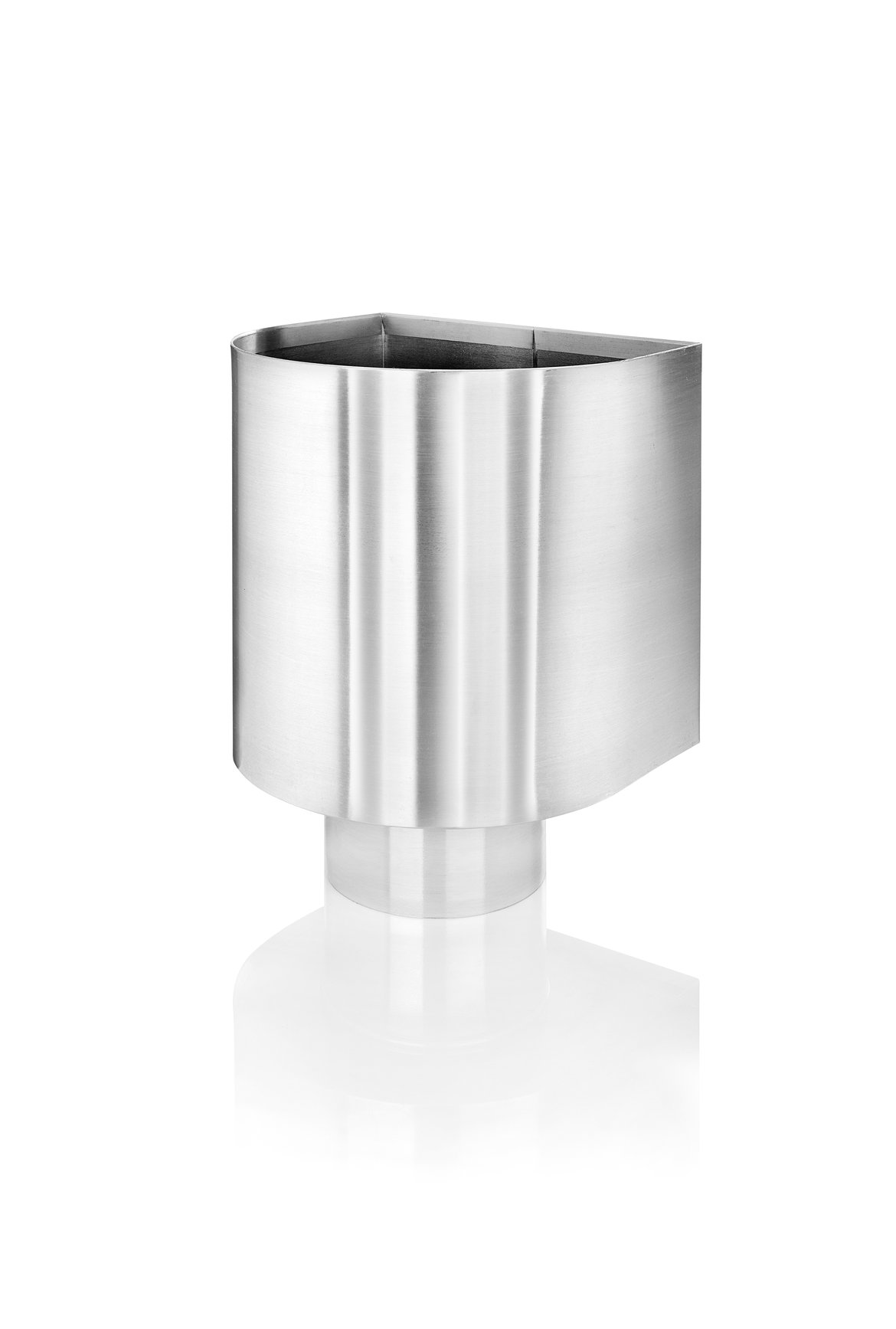

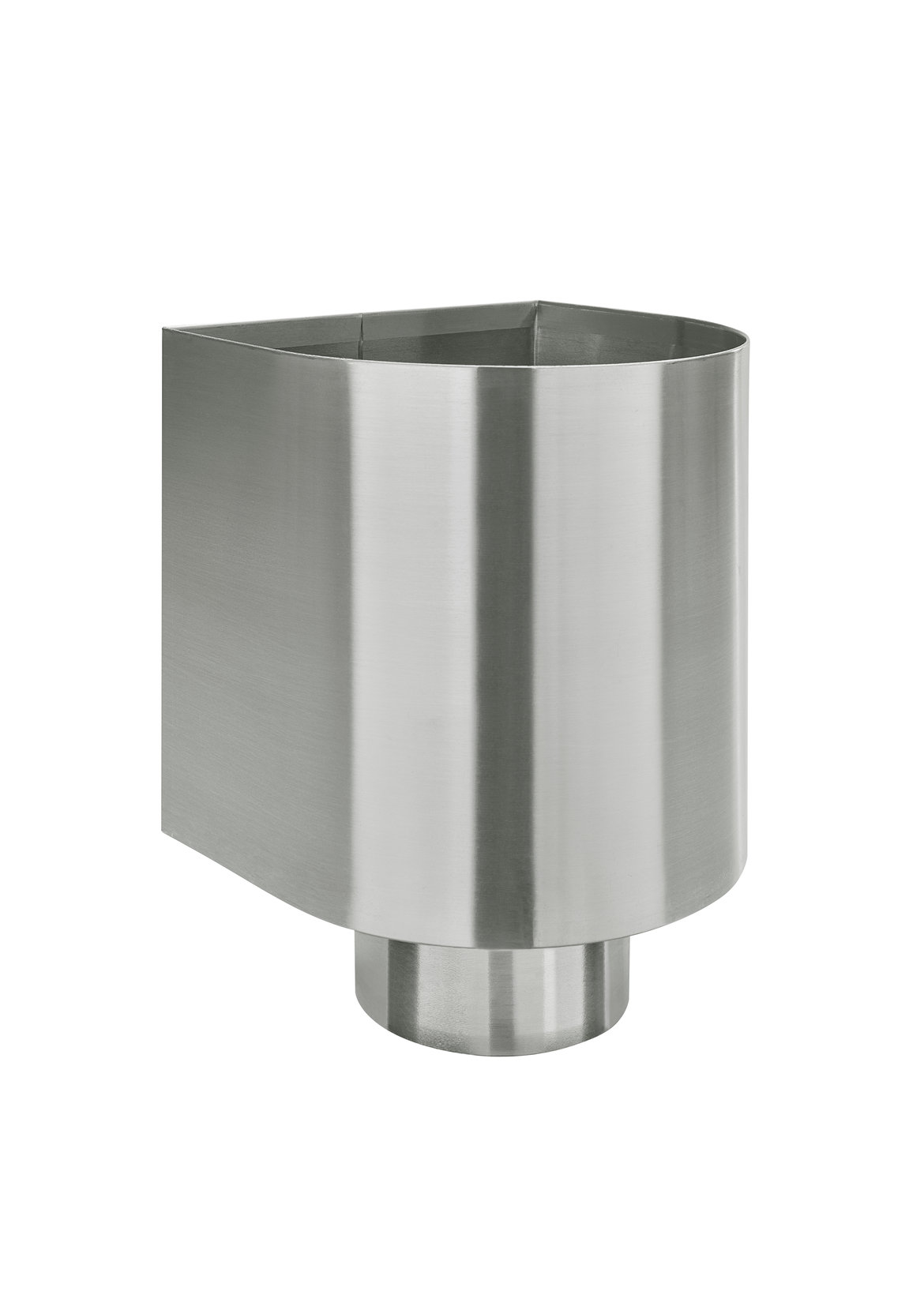

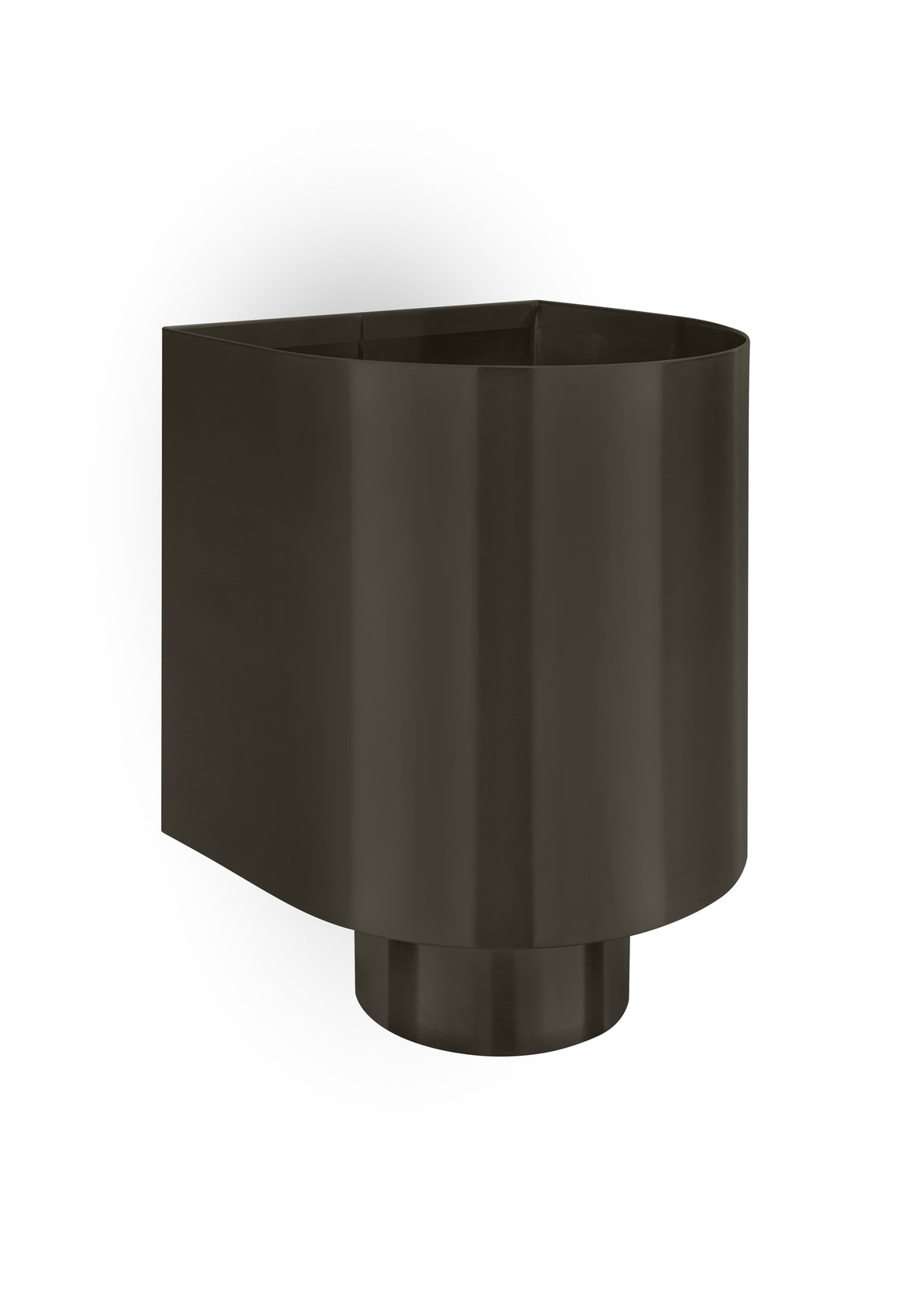

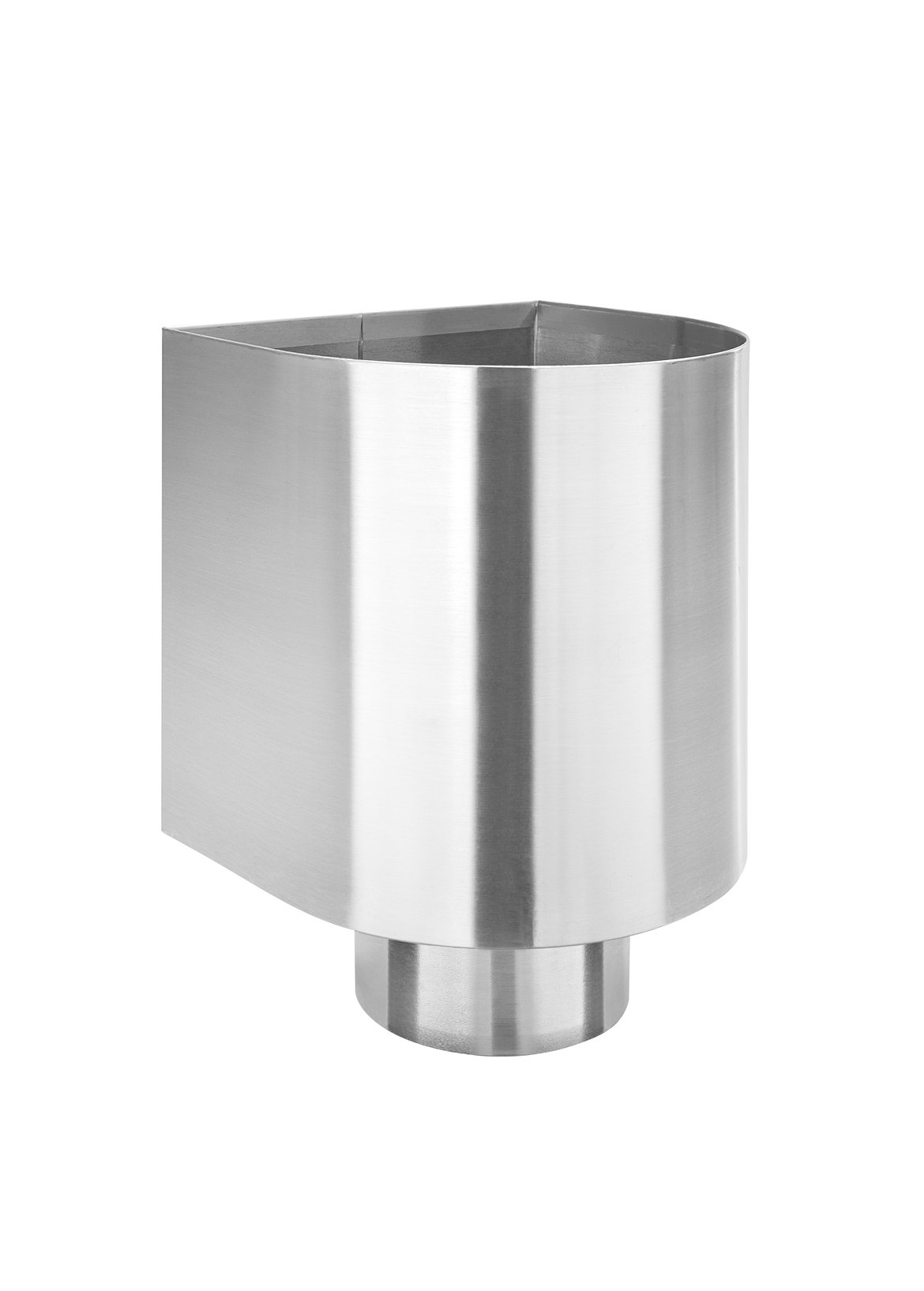

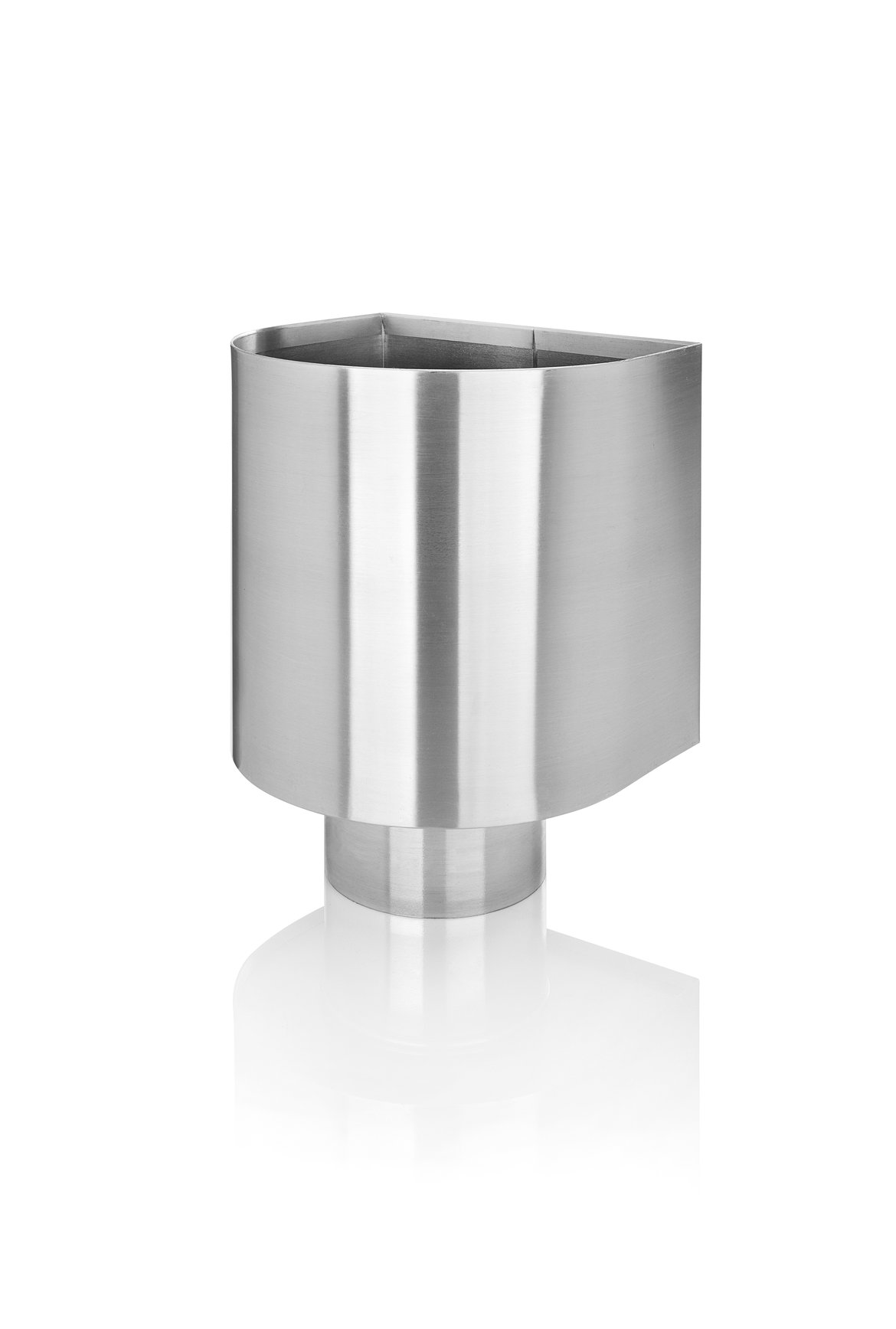

Flat roof hopper, half round without inflow
The flat-roof hopper is ideal for nestling against the façade with its half round shape and interacts with a round downpipe to create a harmonious appearance. The TPE seal is available separately for the rear pipe connection, the position, shape and size of which can be freely selected.
Back to overview
| Material / Nominal Size |
|---|
| Zinc |
| quartz-zinc |
| anthra-zinc |
| Aluminium |
| 80 | 100 |
|---|---|
|
63207
GRÖMO Flat roof hopper, half round without inflow Zinc (63207) Description: Flat roof hopper, half round without inflow Material: Zinc Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 63207 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne Norm: DIN EN 612:2005-04 |
63208
GRÖMO Flat roof hopper, half round without inflow Zinc (63208) Description: Flat roof hopper, half round without inflow Material: Zinc Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 63208 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne Norm: DIN EN 612:2005-04 |
|
66197
GRÖMO Flat roof hopper, half round without inflow quartz-zinc (66197) Description: Flat roof hopper, half round without inflow Material: quartz-zinc Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 66197 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne Norm: DIN EN 612:2005-04 |
66198
GRÖMO Flat roof hopper, half round without inflow quartz-zinc (66198) Description: Flat roof hopper, half round without inflow Material: quartz-zinc Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 66198 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne Norm: DIN EN 612:2005-04 |
|
67187
GRÖMO Flat roof hopper, half round without inflow anthra-zinc (67187) Description: Flat roof hopper, half round without inflow Material: anthra-zinc Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 67187 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne |
67188
GRÖMO Flat roof hopper, half round without inflow anthra-zinc (67188) Description: Flat roof hopper, half round without inflow Material: anthra-zinc Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 67188 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne |
|
84617
GRÖMO Flat roof hopper, half round without inflow Aluminium (84617) Description: Flat roof hopper, half round without inflow Material: Aluminium Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 84617 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne Norm: DIN EN 612:2005-04 |
84618
GRÖMO Flat roof hopper, half round without inflow Aluminium (84618) Description: Flat roof hopper, half round without inflow Material: Aluminium Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 84618 Size: Height: 185 mm, width: 180 mm, depth: 160 mm Overflow: ohne Norm: DIN EN 612:2005-04 |
