Design flat-roof hopper

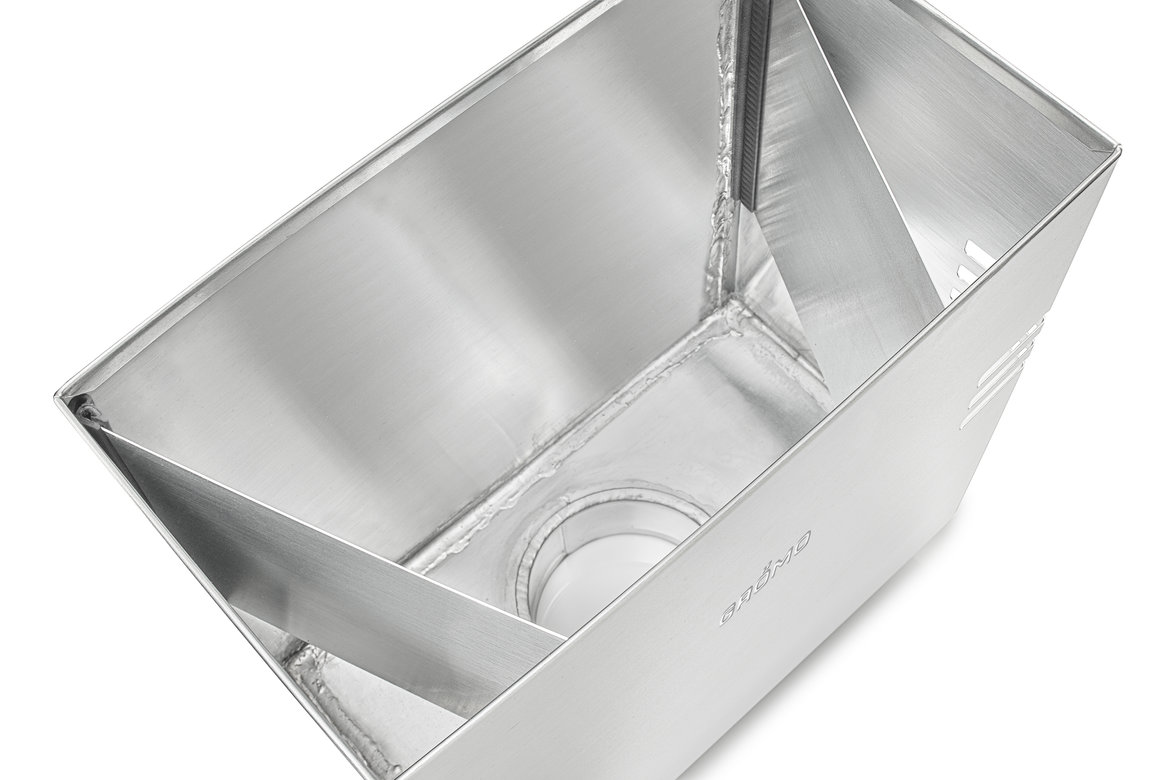

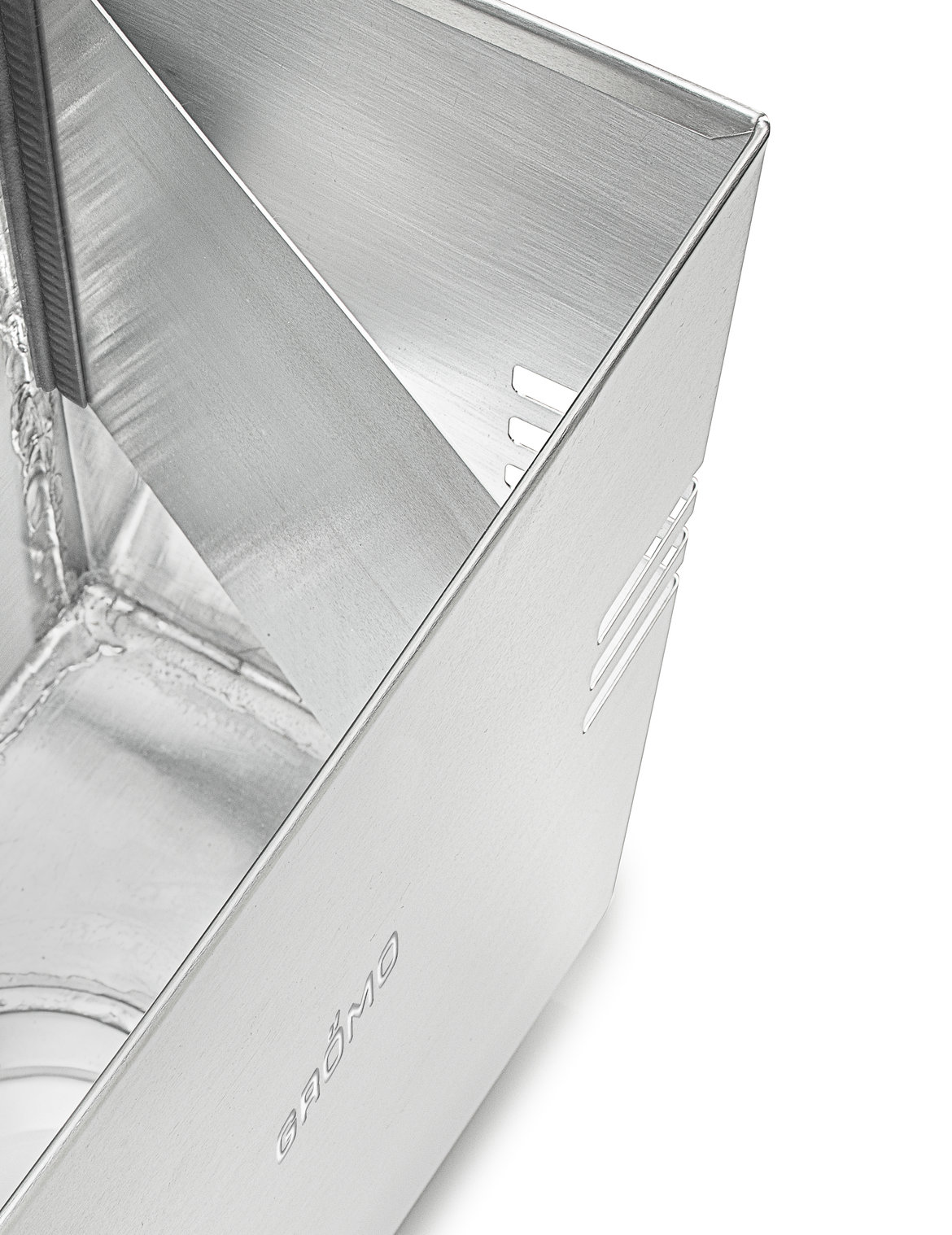

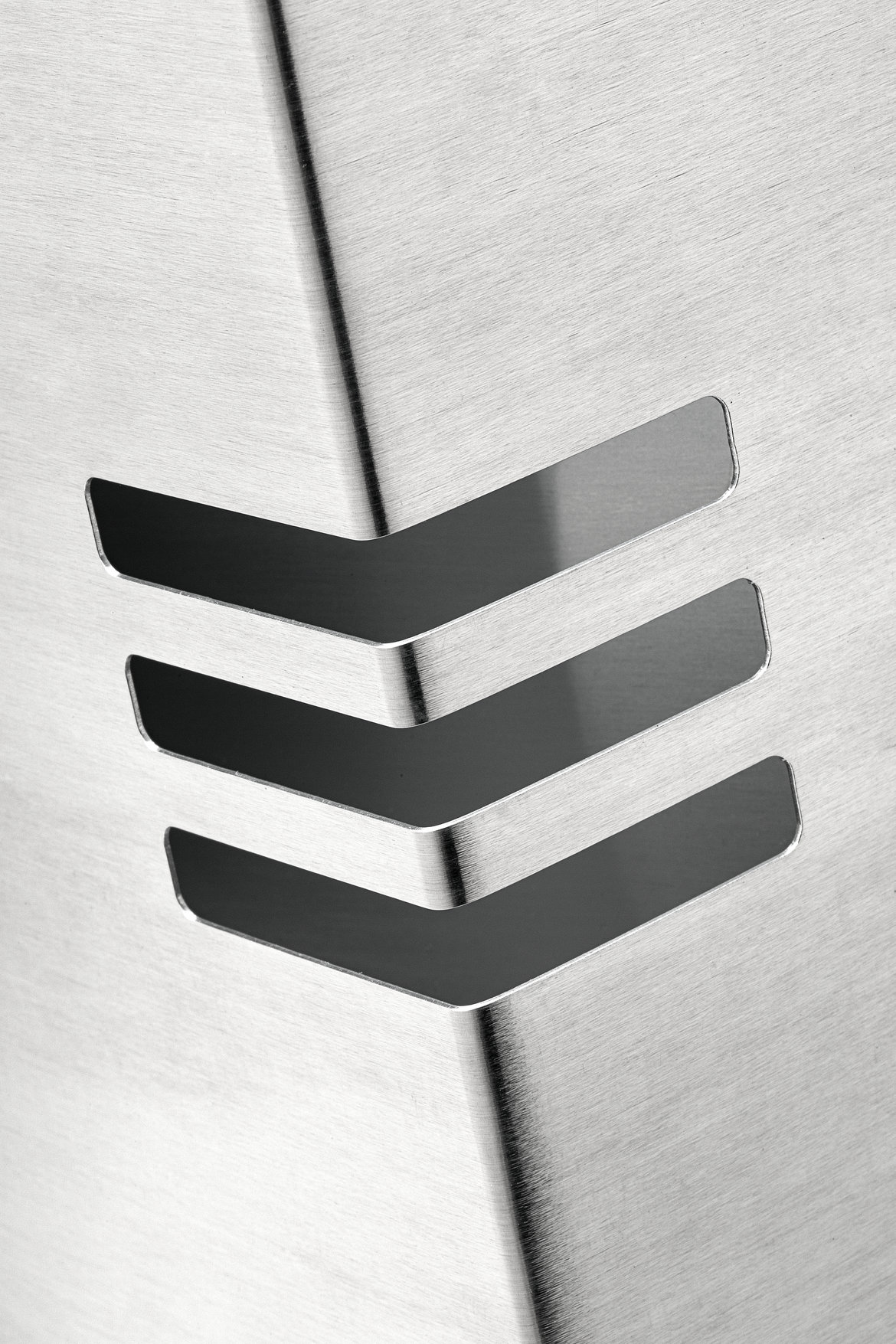

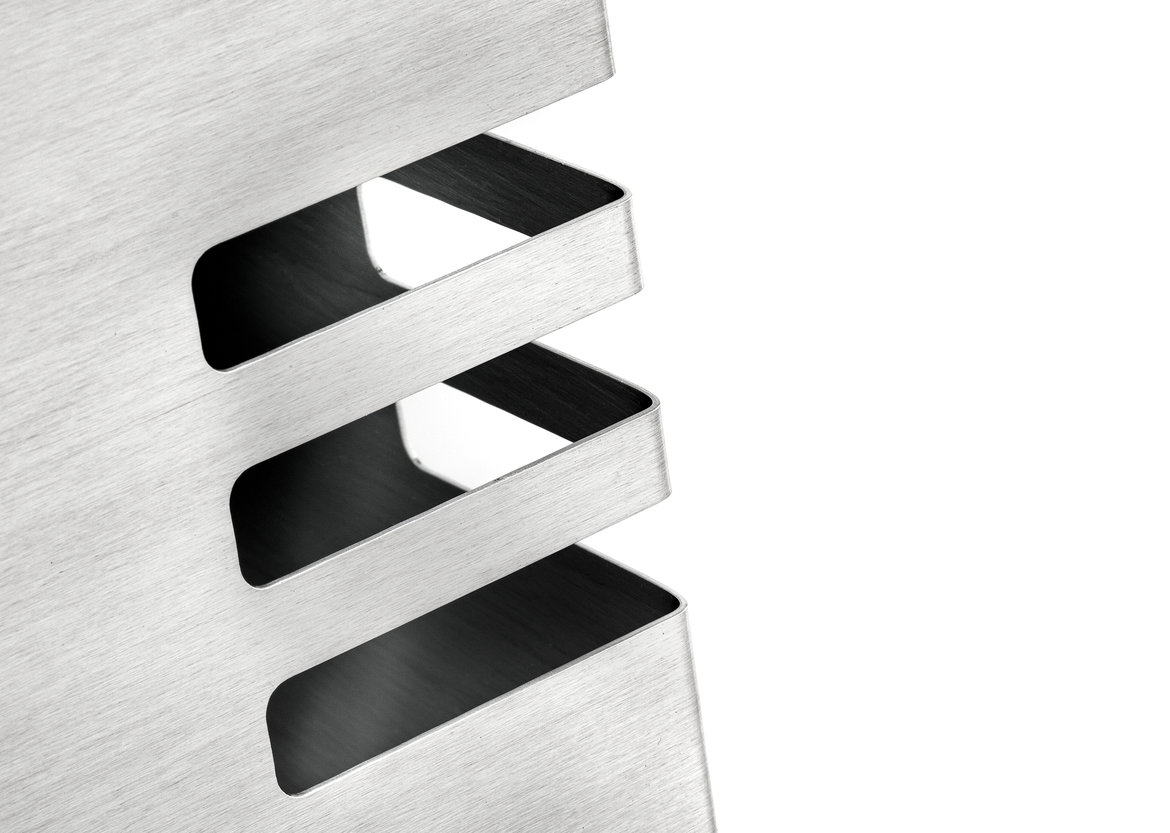

The aesthetically pleasing design flat-roof hopper ensures uniform and visually appealing drainage of all parts of a house. Its dimensions and compact shape make it particularly suitable for parapet drainage in buildings of different sizes. The emergency overflow on the designer flat-roof hopper is already created by cleverly positioned drainage slots. Individual structural conditions can nevertheless be taken into account, as the position of the inflow can be specified within a defined area. The overflow slots on both sides are designed so that accumulated water drains away before it backs up in the inflow pipe. Equipped with an integrated splash guard, the designer flat-roof hopper virtually eliminates the possibility of unplanned water leaks from the drainage slots, even in heavy rain.

Back to overview
Material / Nominal Size
Zinc
Aluminium
76 80 87 100 120
62910
GRÖMO Design flat-roof hopper Zinc (62910)
Description:
Design flat-roof hopper
Material: Zinc
Nominal size (mm): 76
Manufacturer: GRÖMO
Item no.: 62910
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne
62911
GRÖMO Design flat-roof hopper Zinc (62911)
Description:
Design flat-roof hopper
Material: Zinc
Nominal size (mm): 80
Manufacturer: GRÖMO
Item no.: 62911
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne
62912
GRÖMO Design flat-roof hopper Zinc (62912)
Description:
Design flat-roof hopper
Material: Zinc
Nominal size (mm): 87
Manufacturer: GRÖMO
Item no.: 62912
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne
62913
GRÖMO Design flat-roof hopper Zinc (62913)
Description:
Design flat-roof hopper
Material: Zinc
Nominal size (mm): 100
Manufacturer: GRÖMO
Item no.: 62913
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne
62914
GRÖMO Design flat-roof hopper Zinc (62914)
Description:
Design flat-roof hopper
Material: Zinc
Nominal size (mm): 120
Manufacturer: GRÖMO
Item no.: 62914
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne
84726
GRÖMO Design flat-roof hopper Aluminium (84726)
Description:
Design flat-roof hopper
Material: Aluminium
Nominal size (mm): 80
Manufacturer: GRÖMO
Item no.: 84726
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne
84727
GRÖMO Design flat-roof hopper Aluminium (84727)
Description:
Design flat-roof hopper
Material: Aluminium
Nominal size (mm): 100
Manufacturer: GRÖMO
Item no.: 84727
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne
84728
GRÖMO Design flat-roof hopper Aluminium (84728)
Description:
Design flat-roof hopper
Material: Aluminium
Nominal size (mm): 120
Manufacturer: GRÖMO
Item no.: 84728
Size: Nominal size 76-80: Height: 210
mm, width: 210 mm, depth: 140 mm
Nominal size 87 -100: Height: 300 mm,
width: 300 mm, depth: 160 mm
Nominal size 120: Height: 360 mm,
width: 360 mm, depth: 180 mm
Overflow: ohne

Product photo may deviate slightly from actual product in individual cases.
Technical specs subject to change.
