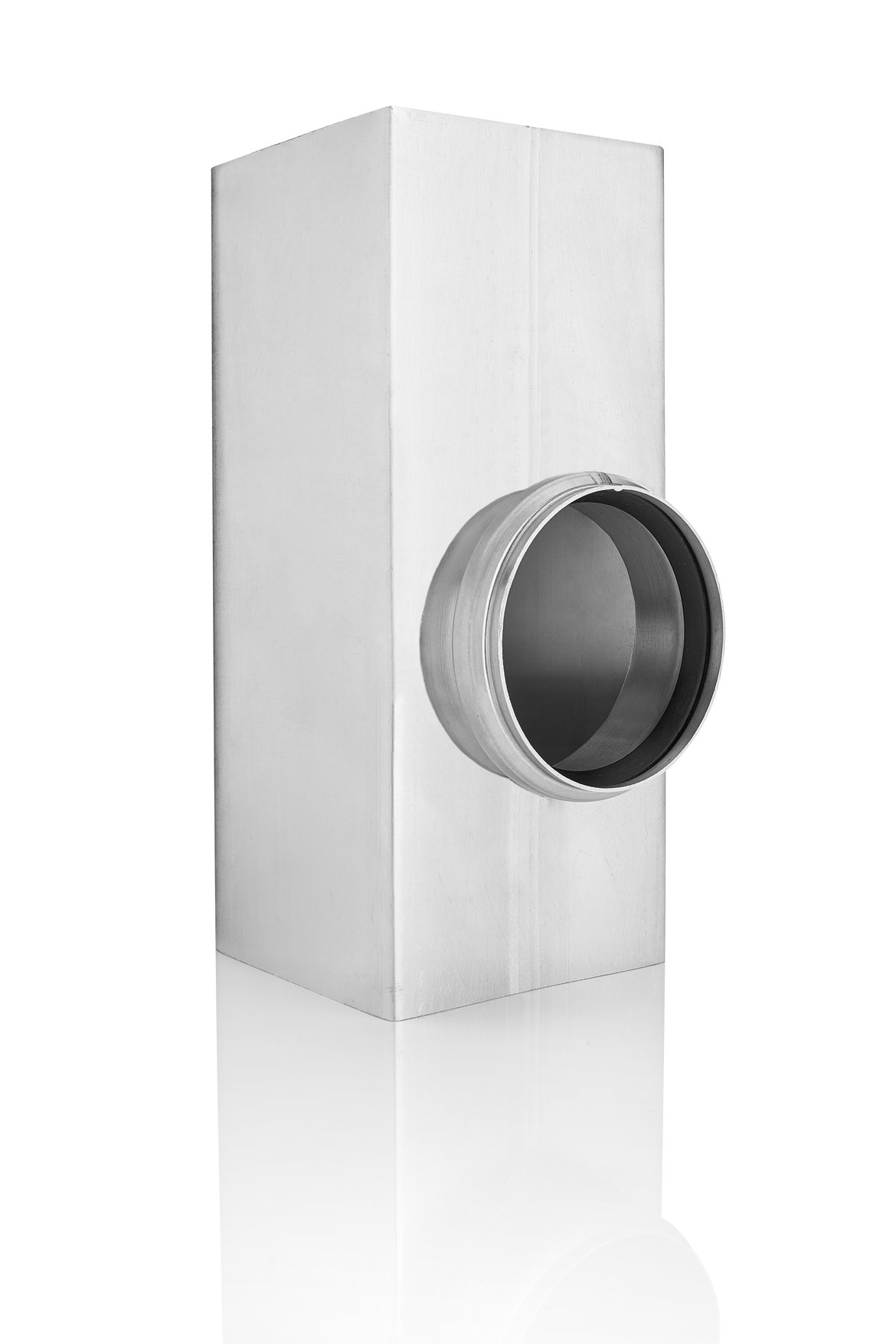

Flat-roof branch box-shaped
The flat-roof branch can be easily combined with all common
flat roof drainage systems and creates beautiful accents within the design of the exterior façade. Thanks to the pre-mounted gasket in the connecting pipe, mounting the flat-roof branch could not be easier. It is placed on the flat roof attic drainage pipe, and is simply connected to the downpipe. The perforated plate prevents the ingress of leaves, and ensures sufficient ventilation of the downpipe in heavy rain.
| Material / Nominal Size |
|---|
| Zinc |
| Aluminium |
| 75/80x80 | 75/100x100 | 110/100x100 |
|---|---|---|
|
63336
1

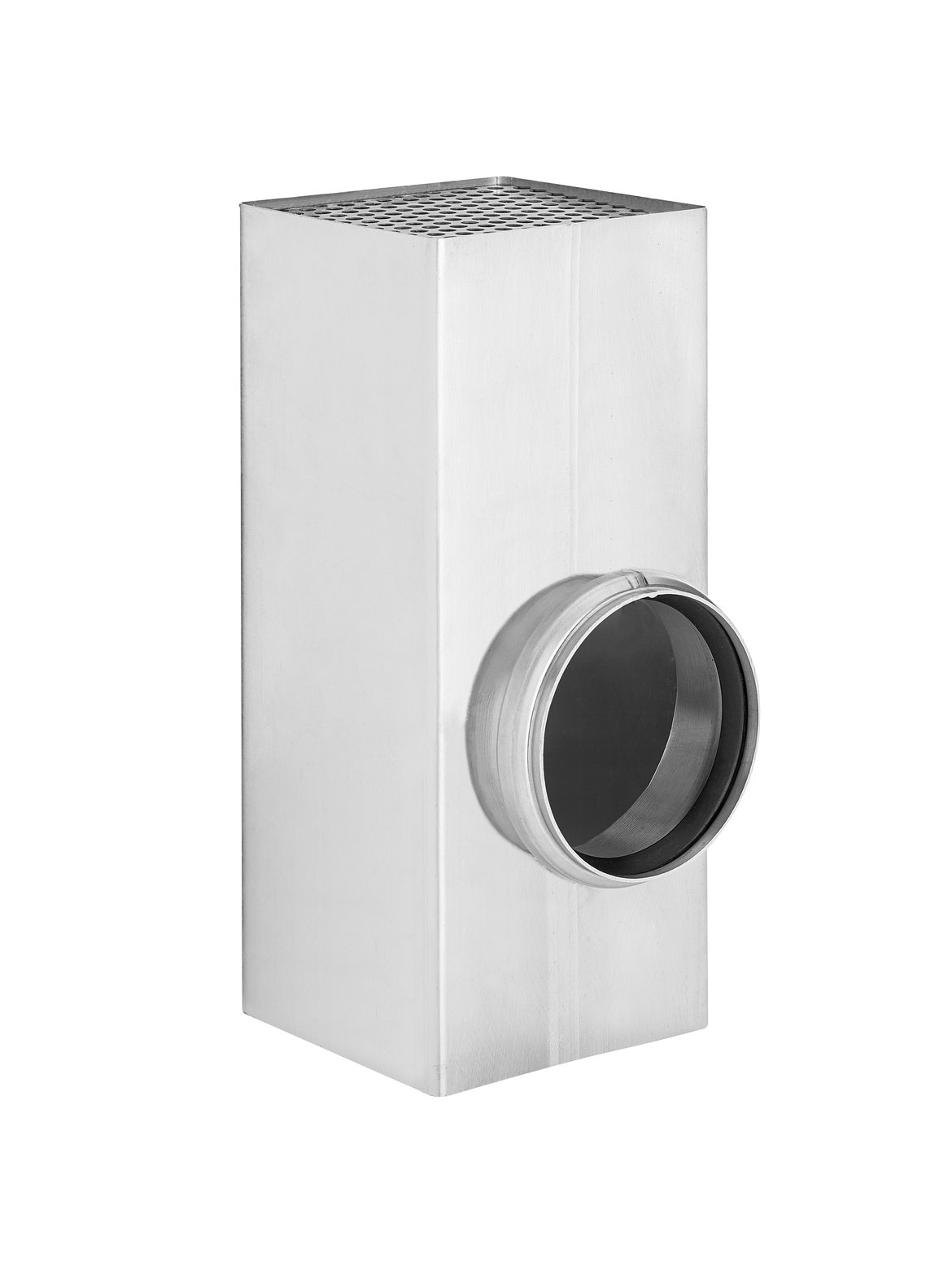

GRÖMO Flat-roof branch box-shaped Zinc (63336) Description: Flat-roof branch box-shaped Material: Zinc Nominal size (mm): 75/100x100 Manufacturer: GRÖMO Item no.: 63336 Version: Includes pre-mounted inflow seal Norm: DIN EN 612:2005-04 |
63338
1

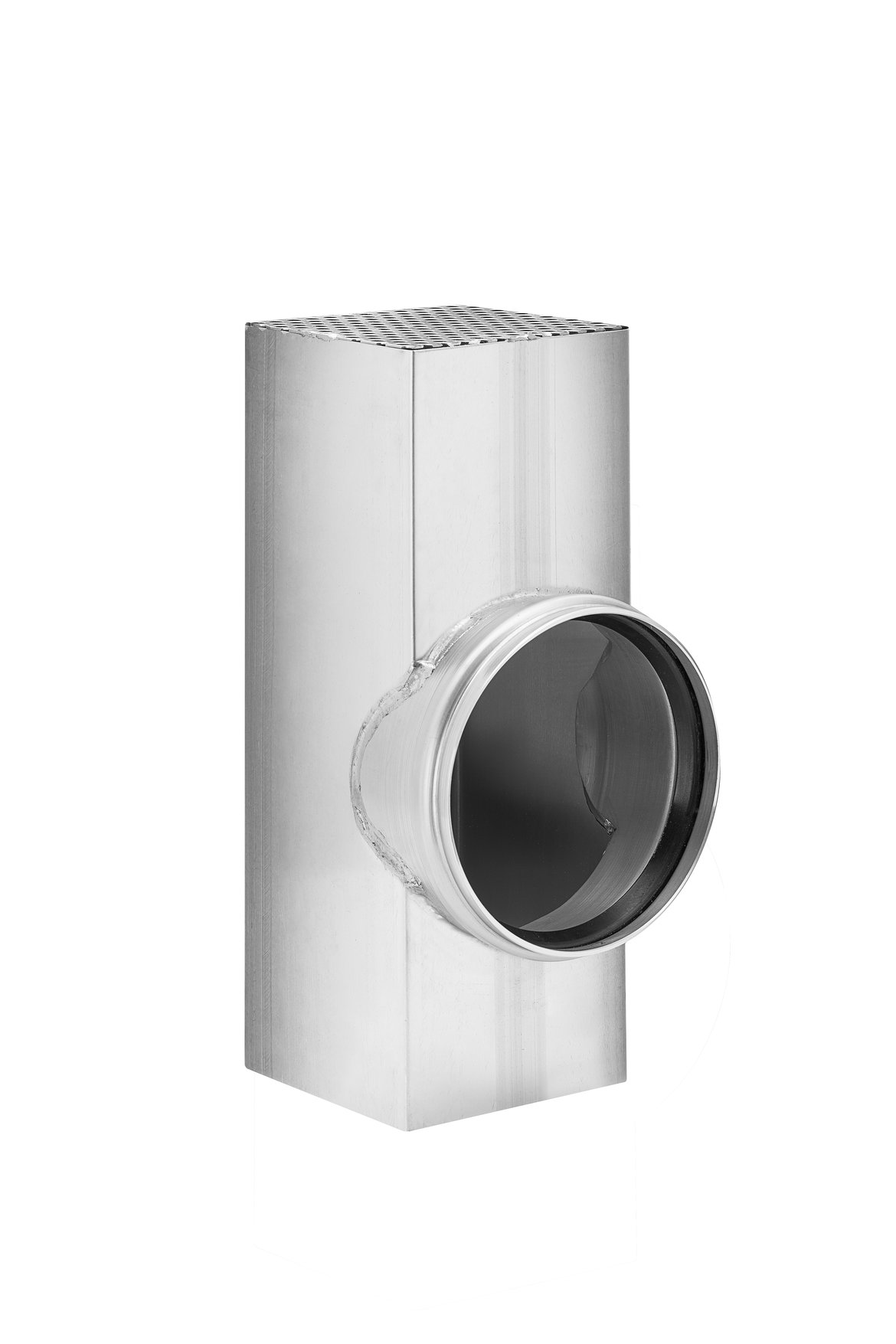

GRÖMO Flat-roof branch box-shaped Zinc (63338) Description: Flat-roof branch box-shaped Material: Zinc Nominal size (mm): 110/100x100 Manufacturer: GRÖMO Item no.: 63338 Version: Includes pre-mounted inflow seal Norm: DIN EN 612:2005-04 |
|
|
84234
1

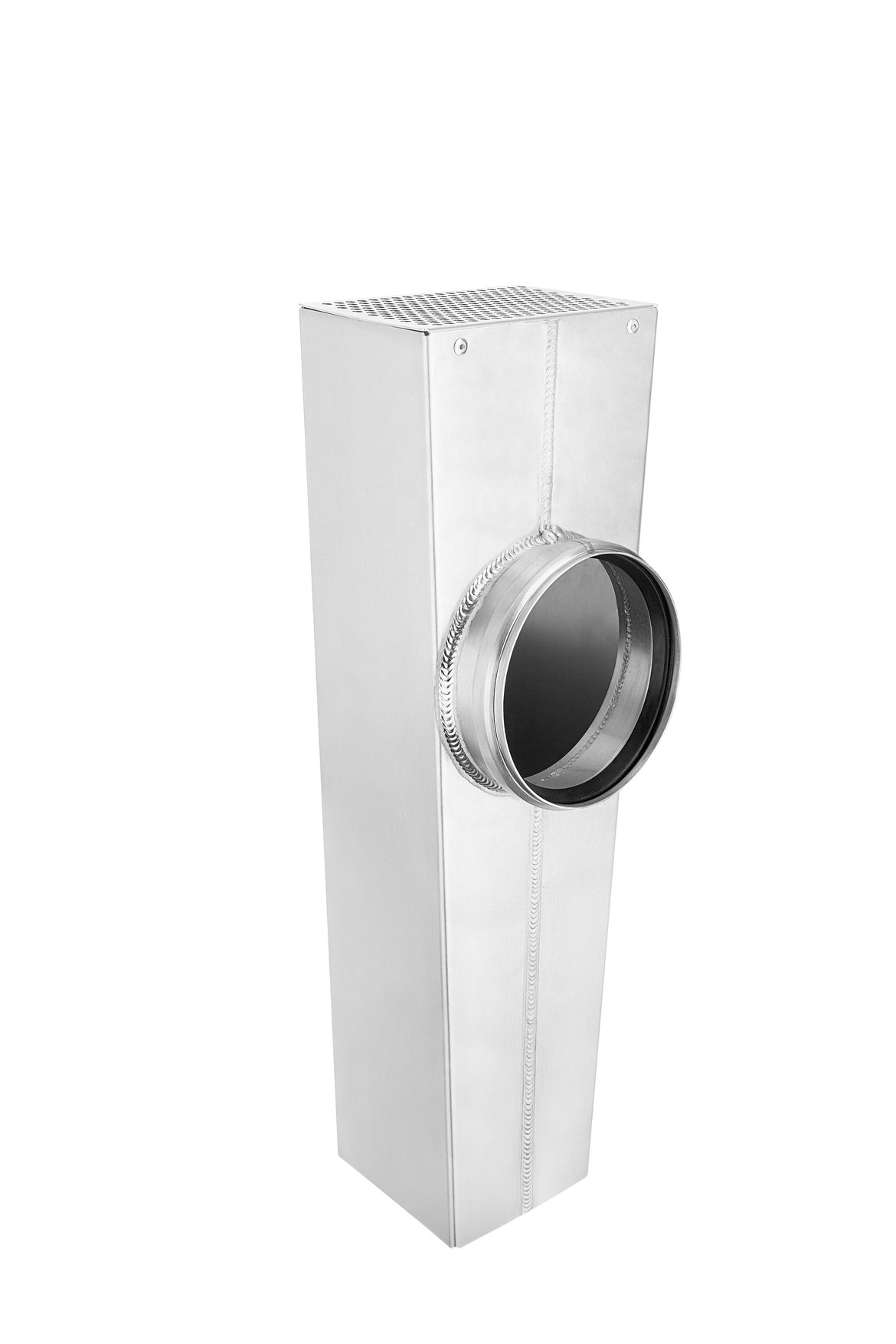

GRÖMO Flat-roof branch box-shaped Aluminium (84234) Description: Flat-roof branch box-shaped Material: Aluminium Nominal size (mm): 75/80x80 Manufacturer: GRÖMO Item no.: 84234 Version: Includes pre-mounted inflow seal |
84236
1
GRÖMO Flat-roof branch box-shaped Aluminium (84236) Description: Flat-roof branch box-shaped Material: Aluminium Nominal size (mm): 75/100x100 Manufacturer: GRÖMO Item no.: 84236 Version: Includes pre-mounted inflow seal |
84238
1
GRÖMO Flat-roof branch box-shaped Aluminium (84238) Description: Flat-roof branch box-shaped Material: Aluminium Nominal size (mm): 110/100x100 Manufacturer: GRÖMO Item no.: 84238 Version: Includes pre-mounted inflow seal Drainage capacity (l/s): 30.000 |
- 1 Includes pre-mounted inflow seal
Spare part: Lip seal ring
| Material / Nominal Size |
|---|
| Other |
| 75 | 110 |
|---|---|
|
50949
2
GRÖMO Lip seal ring Other (50949) Description: Lip seal ring Material: Other Nominal size (mm): 75 Manufacturer: GRÖMO Item no.: 50949 Version: Suitable for all flat roof branches except UGINOX Patina K41 |
50950
1
GRÖMO Lip seal ring Other (50950) Description: Lip seal ring Material: Other Nominal size (mm): 110 Manufacturer: GRÖMO Item no.: 50950 Version: For flat-roof branches in zinc, pre-weathered quartz zinc, aluminium |
- 1 For flat-roof branches in zinc, pre-weathered quartz zinc, aluminium
- 2 Suitable for all flat roof branches except UGINOX Patina K41
