The universal flat-roof branch can be easily combined with all common
flat roof drainage systems and creates beautiful accents within the design of the
exterior façade. Designed as a kit, the position of the inflow pipe can be adapted individually to the building conditions on site. The pre-mounted gasket guarantees that the attic drainpipe is connected securely. The perforated plate prevents the ingress of leaves, and ensures sufficient ventilation of the downpipe in heavy rain.
Material / Nominal Size |
---|
Zinc |
75/80 | 75/100 | 110/120 |
---|---|---|
63395
GRÖMO Flat-roof branch universal Zinc (63395) Description: Flat-roof branch universal Material: Zinc Nominal size (mm): 75/80 Manufacturer: GRÖMO Article No.: 63395 Version: Kit consists of two individual parts: Main pipe with perforated end and inflow pipe with pre-mounted seal. Connect by soldering, position of inflow pipe can be defined individually Norm: DIN EN 612:2005-04 |
63396
GRÖMO Flat-roof branch universal Zinc (63396) Description: Flat-roof branch universal Material: Zinc Nominal size (mm): 75/100 Manufacturer: GRÖMO Article No.: 63396 Version: Kit consists of two individual parts: Main pipe with perforated end and inflow pipe with pre-mounted seal. Connect by soldering, position of inflow pipe can be defined individually Norm: DIN EN 612:2005-04 |
63398
GRÖMO Flat-roof branch universal Zinc (63398) Description: Flat-roof branch universal Material: Zinc Nominal size (mm): 110/120 Manufacturer: GRÖMO Article No.: 63398 Version: Kit consists of two individual parts: Main pipe with perforated end and inflow pipe with pre-mounted seal. Connect by soldering, position of inflow pipe can be defined individually Norm: DIN EN 612:2005-04 |

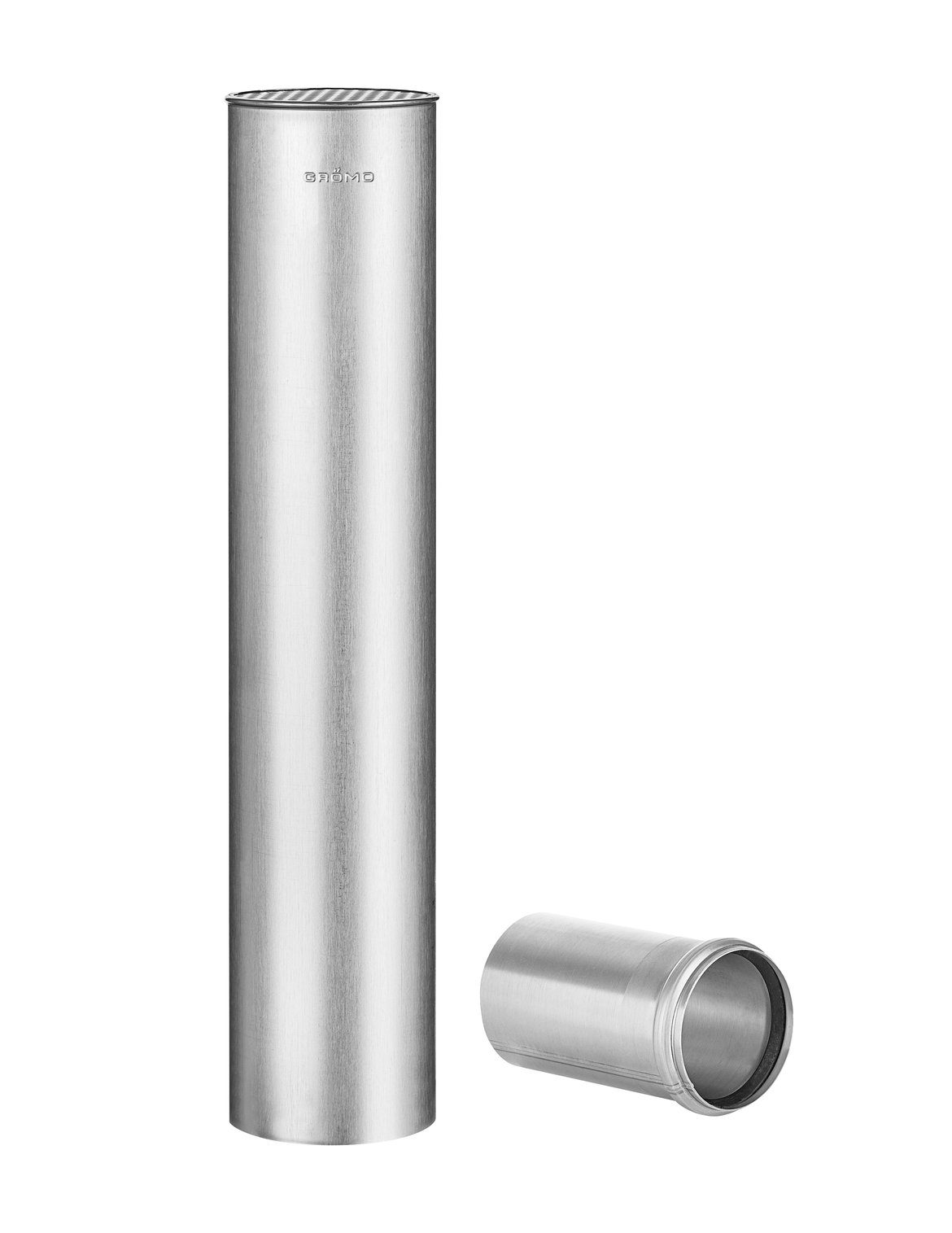

Kit consists of two individual parts: Main pipe with perforated end and inflow pipe with pre-mounted seal. Connect by soldering, position of inflow pipe can be defined individually
Product photo may deviate slightly from actual product in individual cases.
Technical specs subject to change.
