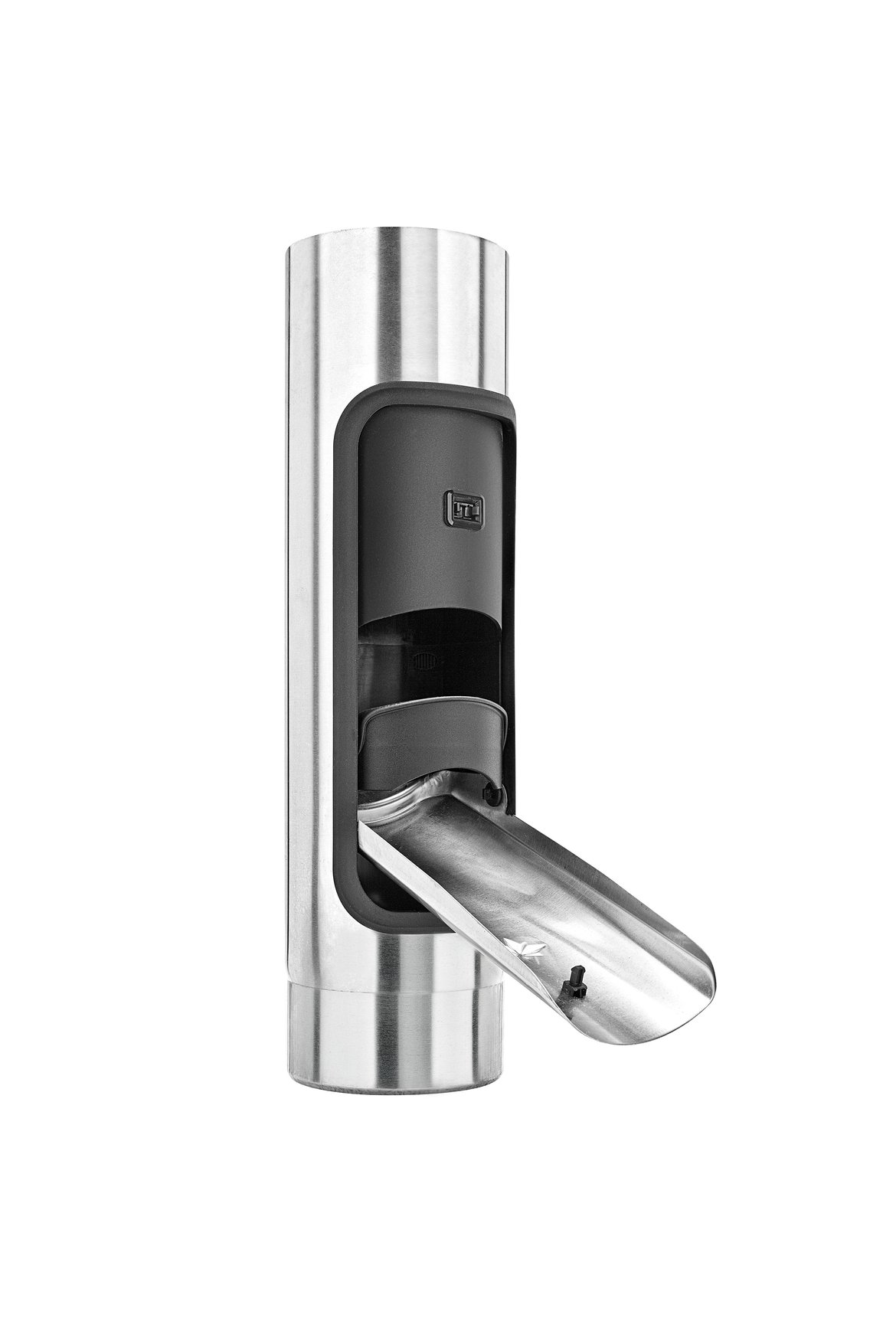

Design rainwater pipe flap with tip seal

The design rainwater pipe flap ensures that it looks classic on the house. The built-in tip seal makes it easier to open, and the easily removable sieve facilitates easy cleaning.

Back to overview
Material / Nominal Size
Zinc
Pre-weathered quartz zinc
Copper
UGINOX Patina K41
Aluminium
100
62800 A

GRÖMO® Design Rainwater Pipe Flap 100
made from titanium zinc and high-grade plastic, cylindrical, with tip seal, in accordance with DIN EN 612, DN 100mm, supply and install professionally.

66800 A

GRÖMO® Design Rainwater Pipe Flap 100

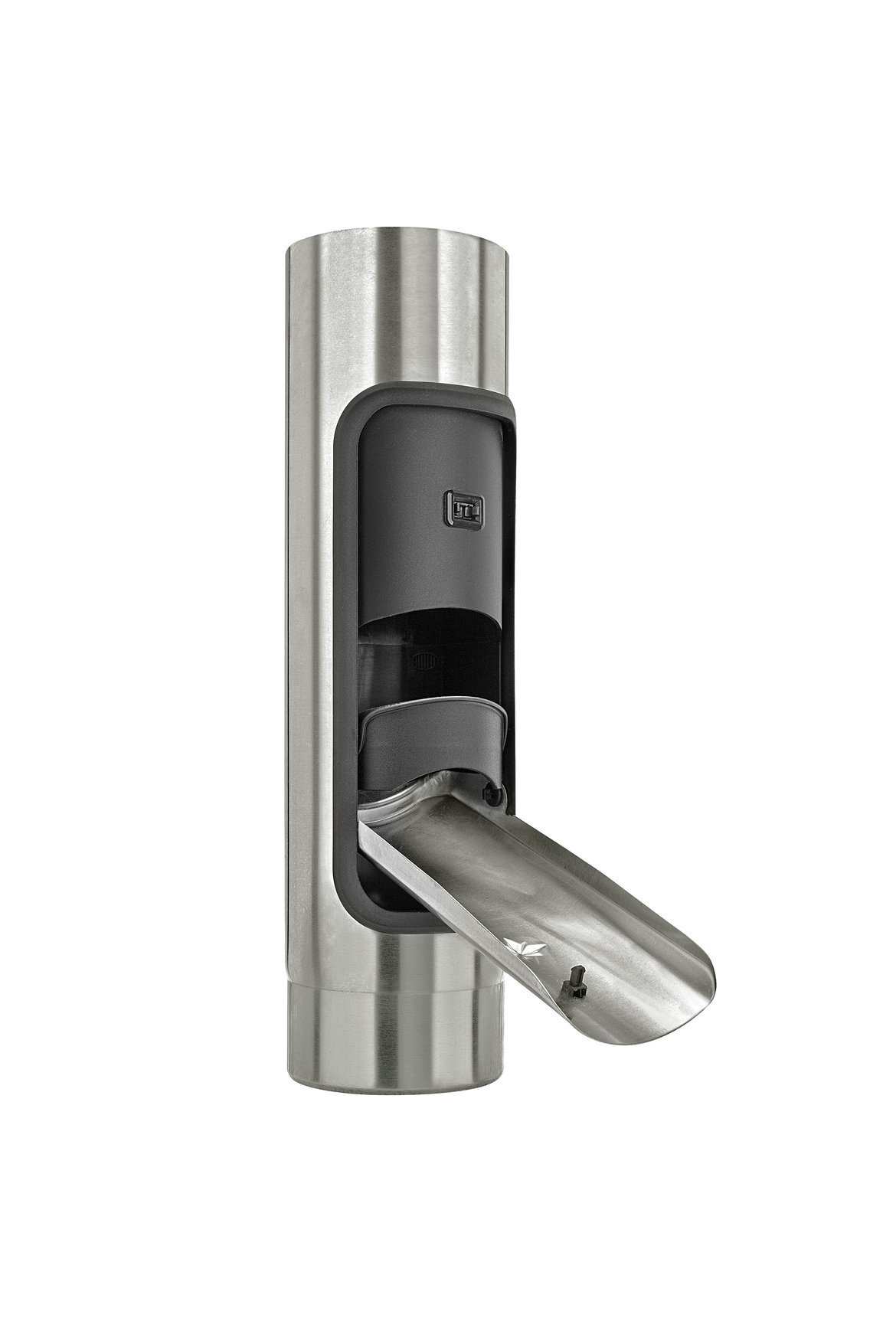

made from pre-weathered quartz zinc and high-grade plastic, cylindrical, with tip seal, in accordance with DIN EN 612, DN 100mm, supply and install professionally.

61800 A

GRÖMO® Design Rainwater Pipe Flap 100

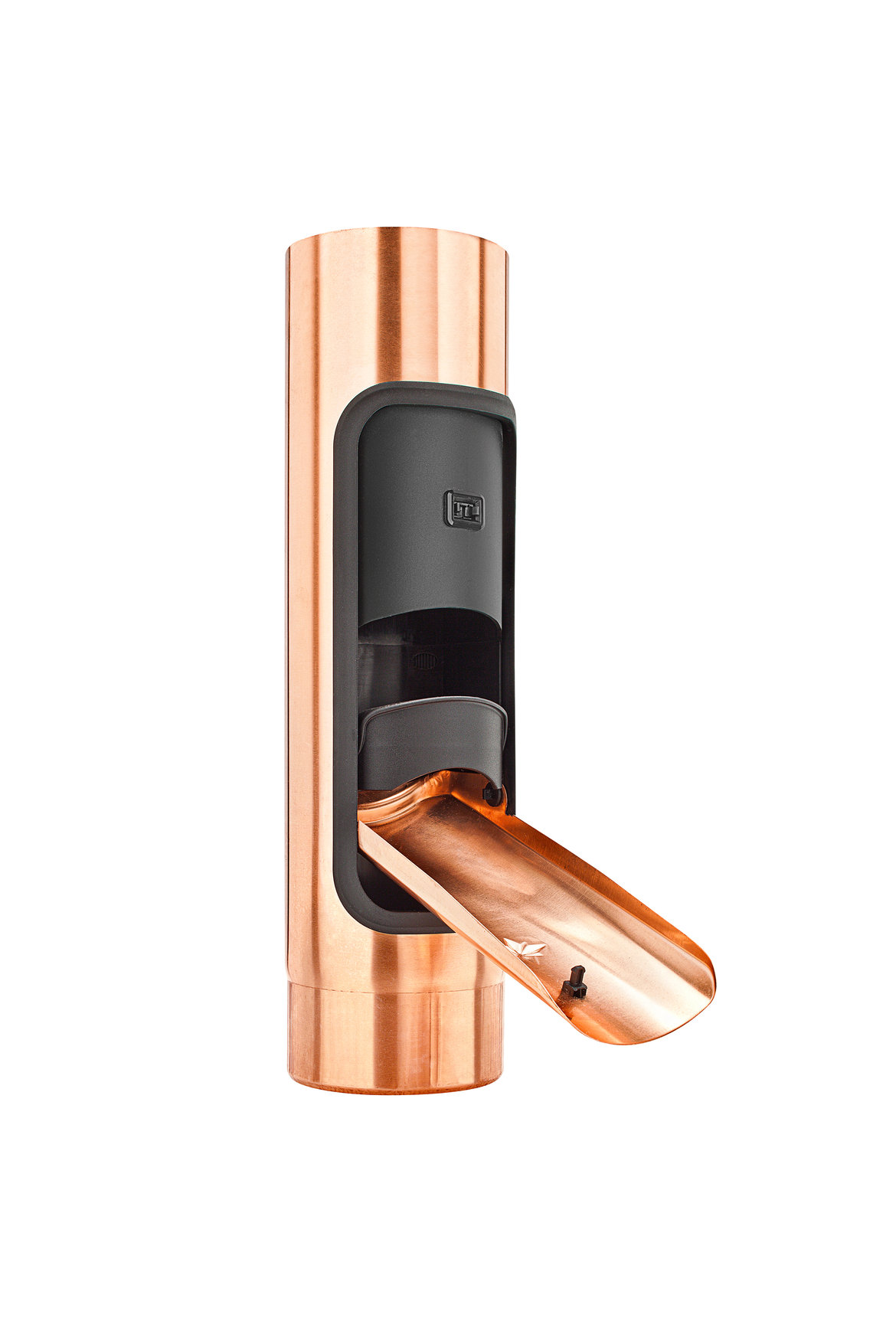

made from copper and high-grade plastic, cylindrical, with tip seal, in accordance with DIN EN 612, DN 100mm, supply and install professionally.

56800 A

GRÖMO® Design Rainwater Pipe Flap 100
made from stainless steel, UGINOX Patina K41 and high-quality plastic, cylindrical, with tip seal, in accordance with DIN EN 612, DN 100 mm, delivery and professional installation.

84800 A

GRÖMO® Design Rainwater Pipe Flap 100
made from aluminium and high-quality plastic, with tip seal, in accordance with DIN EN 612, DN 100mm, delivery and professional installation.

Regularly clean sieve and remove in winter due to risk of frost!

Spare part: Design rainwater pipe flap

Material / Nominal Size
Stainless steel
100
54225 A

GRÖMO® Spare sieve for design rainwater pipe
made of stainless steel, delivery and professional installation.

Invitation to tender & technical datasheet

Please select the item you want from the product overview first. The technical data sheet respectively the specification text will then be displayed.

Product photo may deviate slightly from actual product in individual cases.
Technical specs subject to change.
