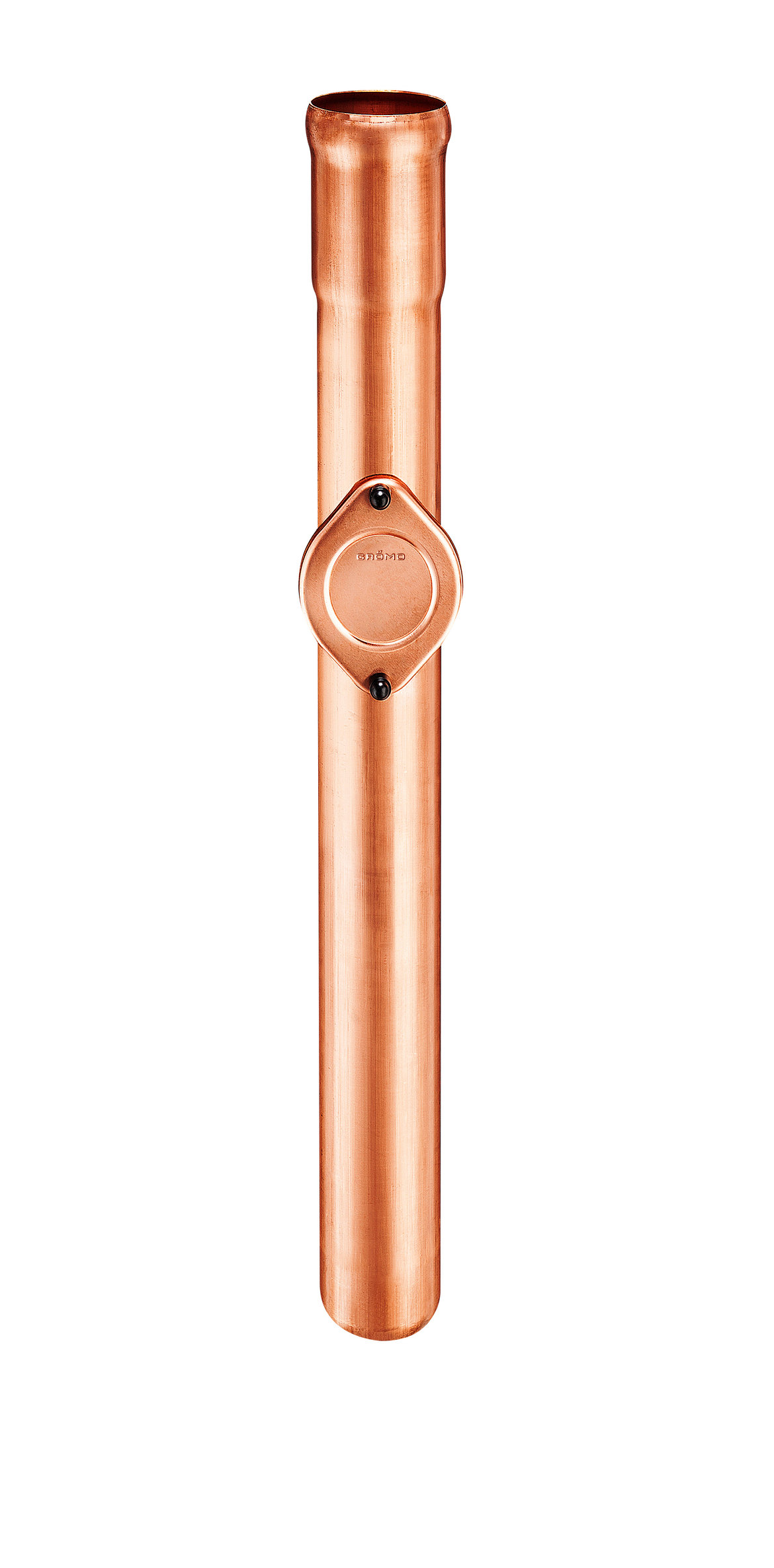

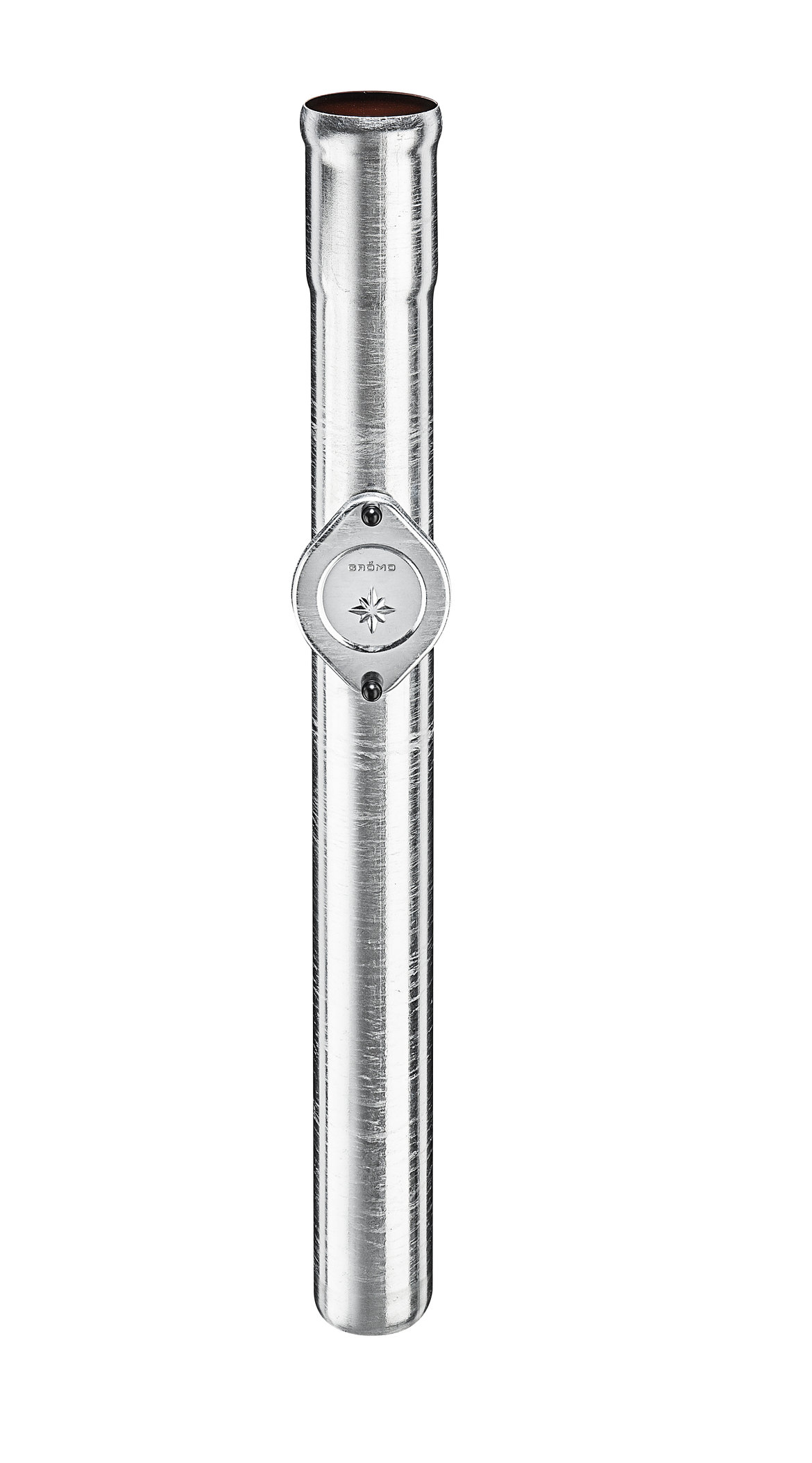

Rainwater standpipe 1.0 m - with cleaning lid

The rainwater standpipe protects against damage in areas prone to impact. As the connector from the downpipe and main sewage system, it withstands the greatest loads. Thanks to the cleaning opening, there is more elbow room for cleaning.

Back to overview

Show article numbers Hide article numbers

Material / Nominal Size
Copper
Galvanised steel

70	80	100	125	150
	97631 ¹ GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Copper (97631) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Copper Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 97631 Version: Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 6,9 Norm: DIN EN 1123-2:2007-12	97632 ² GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Copper (97632) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Copper Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97632 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 10,1 Norm: DIN EN 1123-2:2007-12	97633 ² GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Copper (97633) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Copper Nominal size (mm): 125 Manufacturer: GRÖMO Article No.: 97633 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 20,7 Norm: DIN EN 1123-2:2007-12
97623 ² GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Galvanised steel (97623) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Galvanised steel Nominal size (mm): 70 Manufacturer: GRÖMO Article No.: 97623 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 4,1 Norm: DIN EN 1123-2:2007-12	97624 ¹ GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Galvanised steel (97624) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Galvanised steel Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 97624 Version: Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 6,7 Norm: DIN EN 1123-2:2007-12	97625 ² GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Galvanised steel (97625) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Galvanised steel Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97625 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 10,1 Norm: DIN EN 1123-2:2007-12	97626 ² GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Galvanised steel (97626) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Galvanised steel Nominal size (mm): 125 Manufacturer: GRÖMO Article No.: 97626 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 20,7 Norm: DIN EN 1123-2:2007-12	97627 ² GRÖMO Rainwater standpipe 1.0 m - with cleaning lid Galvanised steel (97627) Description: Rainwater standpipe 1.0 m - with cleaning lid Material: Galvanised steel Nominal size (mm): 150 Manufacturer: GRÖMO Article No.: 97627 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 33,9 Norm: DIN EN 1123-2:2007-12

¹ Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe
² Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe

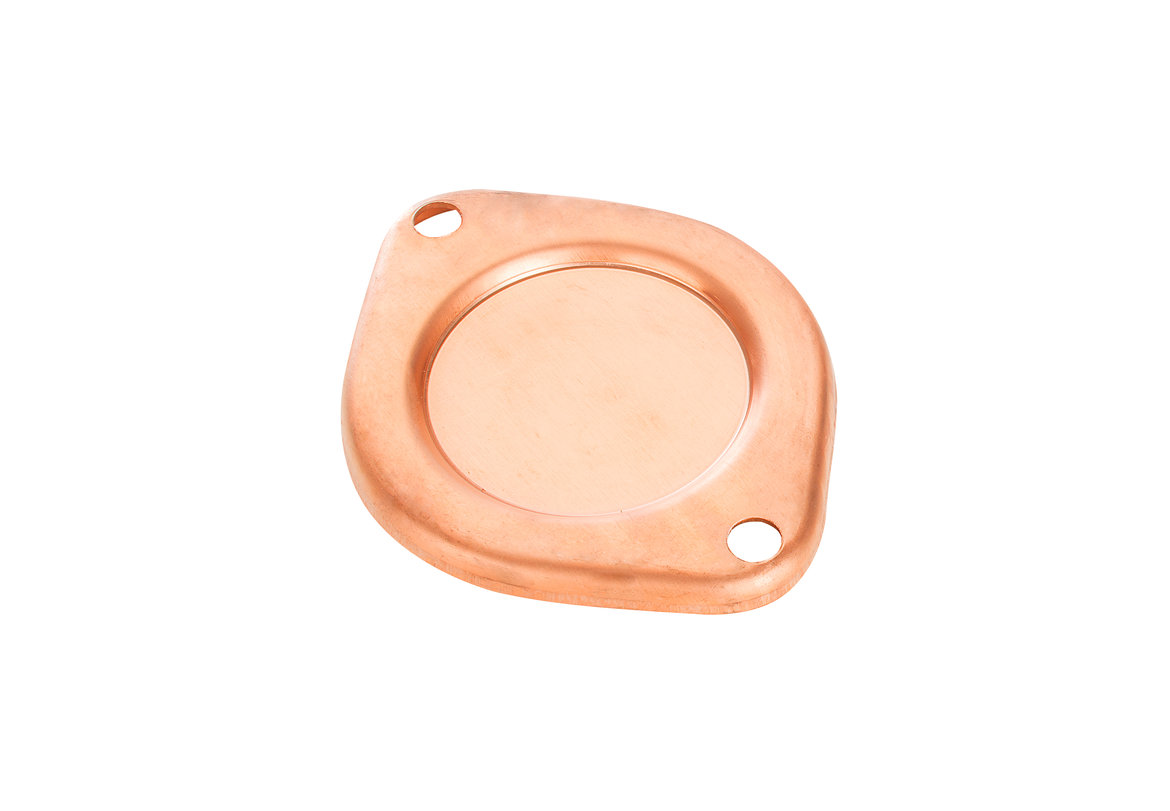

Spare part: Replacement cleaning lid for rainwater standpipe

Material / Nominal Size
Copper
Galvanised steel

100	125
97571 GRÖMO Replacement cleaning lid for rainwater standpipe Copper (97571) Description: Replacement cleaning lid for rainwater standpipe Material: Copper Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97571
97572 GRÖMO Replacement cleaning lid for rainwater standpipe Galvanised steel (97572) Description: Replacement cleaning lid for rainwater standpipe Material: Galvanised steel Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97572	97573 GRÖMO Replacement cleaning lid for rainwater standpipe Galvanised steel (97573) Description: Replacement cleaning lid for rainwater standpipe Material: Galvanised steel Nominal size (mm): 125 Manufacturer: GRÖMO Article No.: 97573

Ask question about product 3D - view Technical data sheet Construction detail DXF Construction detail DWG ZVDH Zert Green Building Text for invitation to tender

Product photo may deviate slightly from actual product in individual cases.
Technical specs subject to change.
