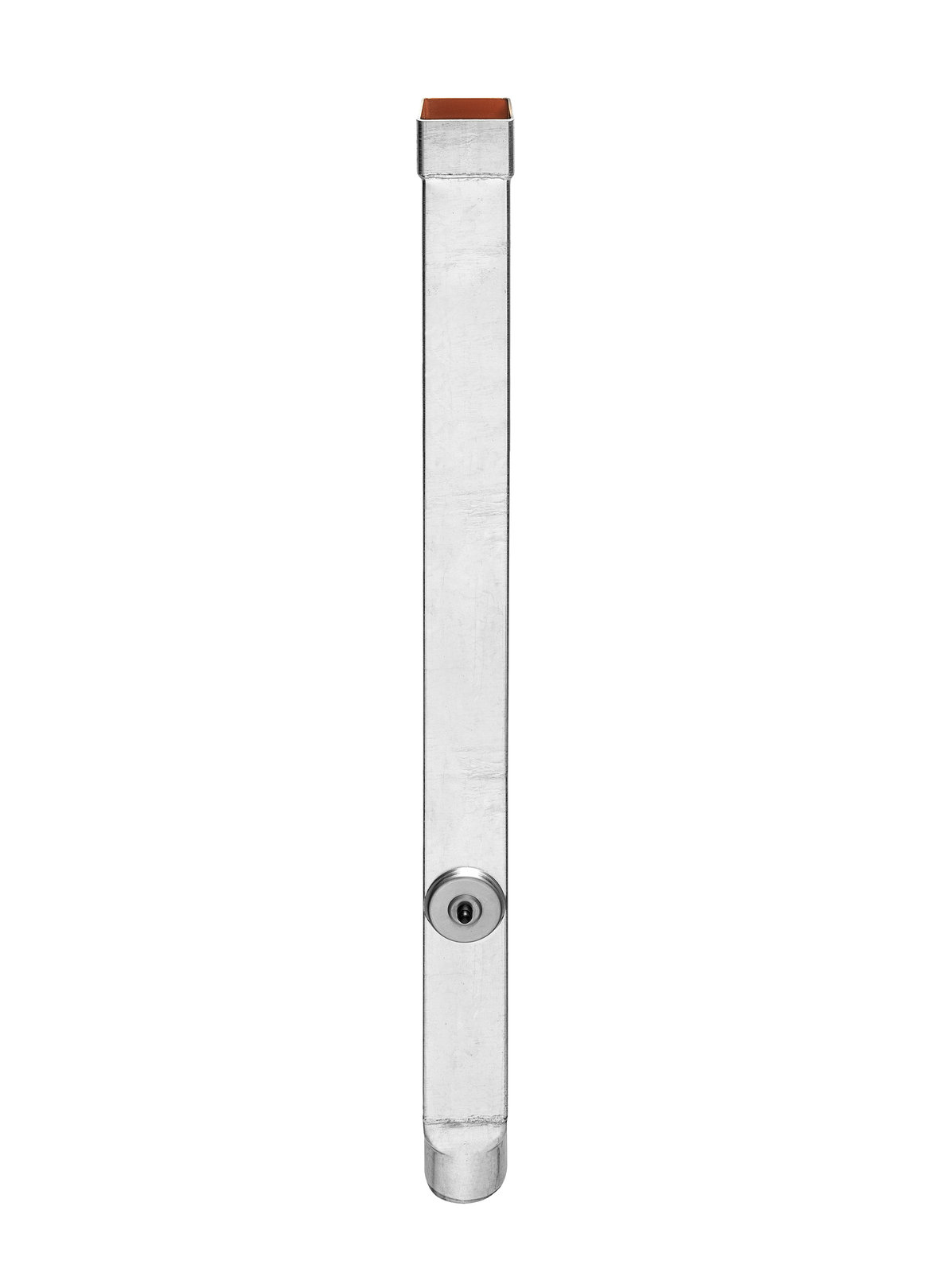

Rainwater standpipe square 1.5 m - with cleaning lid
The rainwater standpipe protects against damage in areas prone to impact. As the connector from the downpipe and main sewage system, it withstands the greatest loads. Thanks to the cleaning opening, there is more elbow room for cleaning.
Back to overview
| Material / Nominal Size |
|---|
| Galvanised steel |
| 100/100 |
|---|
|
97641
GRÖMO Rainwater standpipe square 1.5 m - with cleaning lid Galvanised
steel (97641) Description: Rainwater standpipe square 1.5 m - with cleaning lid Material: Galvanised steel Nominal size (mm): 100/100 Manufacturer: GRÖMO Article No.: 97641 Version: Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 10,1 Norm: DIN EN 1123-2:2007-12 |
Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe
Spare part: Clamp cap for hexagon nut M8
| Material / Nominal Size |
|---|
| Other |
| - |
|---|
|
97575
Clamp cap for hexagon nut M8 (97575) Description: Manufacturer: GRÖMO Article No.: 97575 Material: Other |

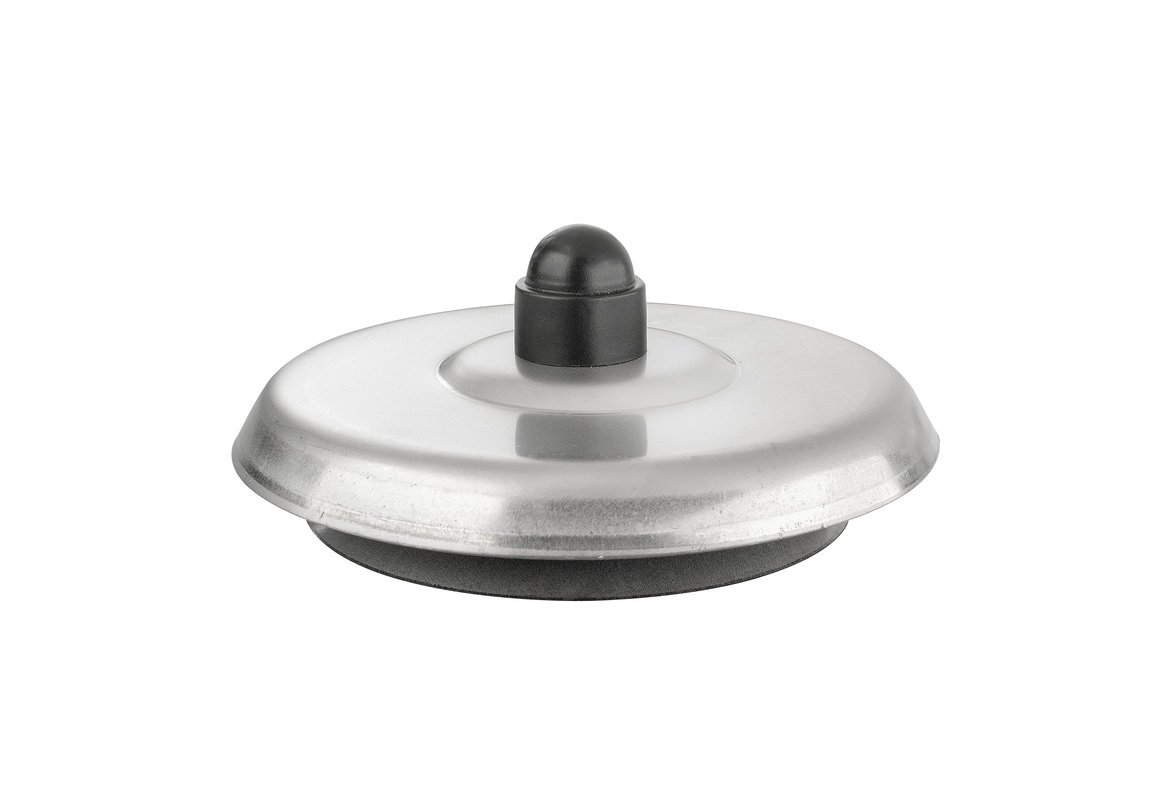

Spare part: Standpipe cover for square rain standpipe
| Material / Nominal Size |
|---|
| Stainless steel |
| - |
|---|
|
97577
Standpipe cover for square rain standpipe (97577) Description: Manufacturer: GRÖMO Article No.: 97577 Material: Stainless steel |
