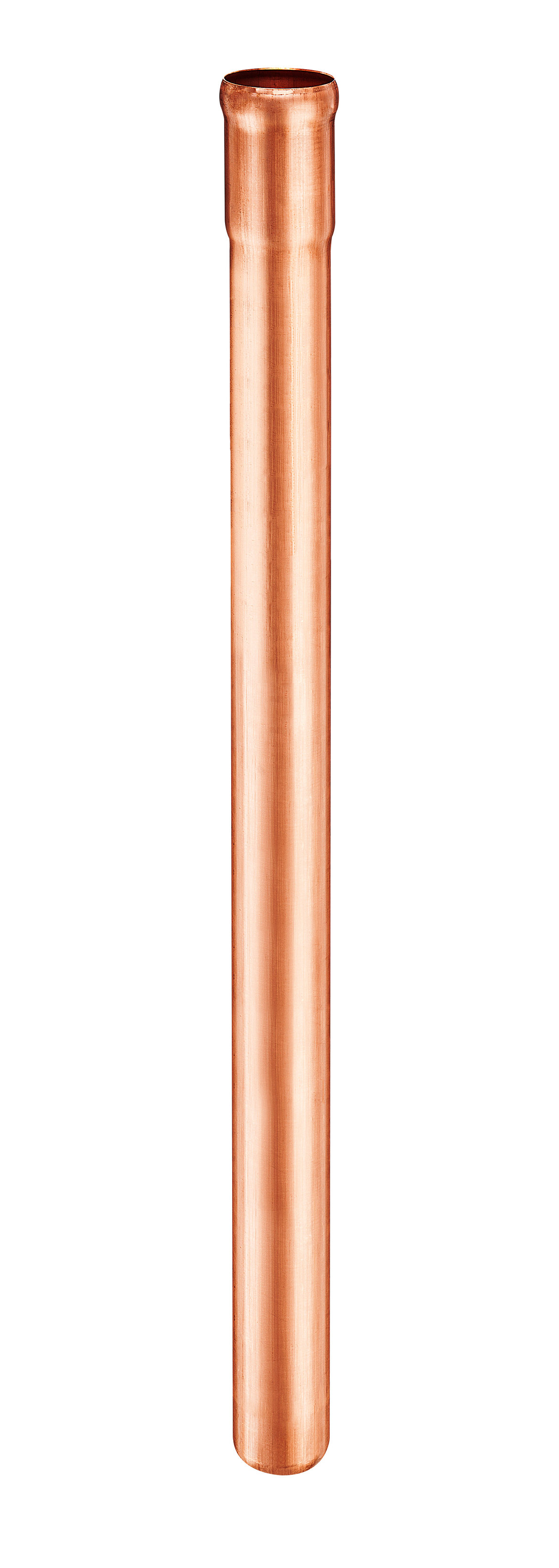

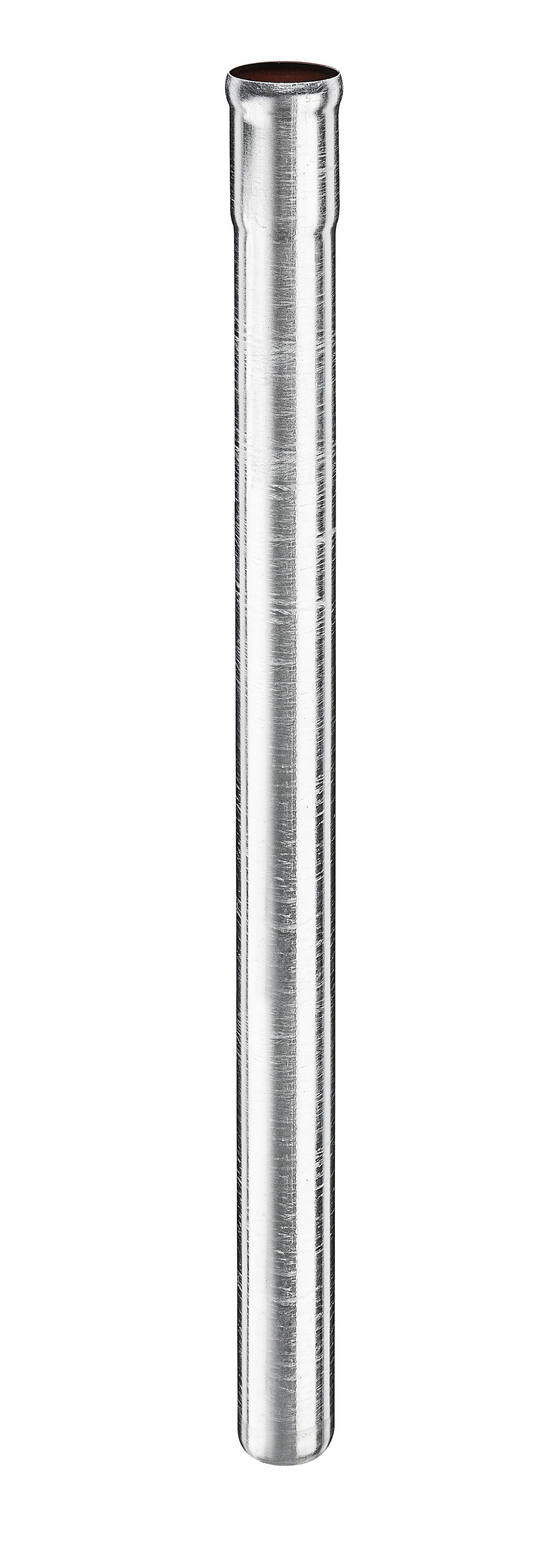

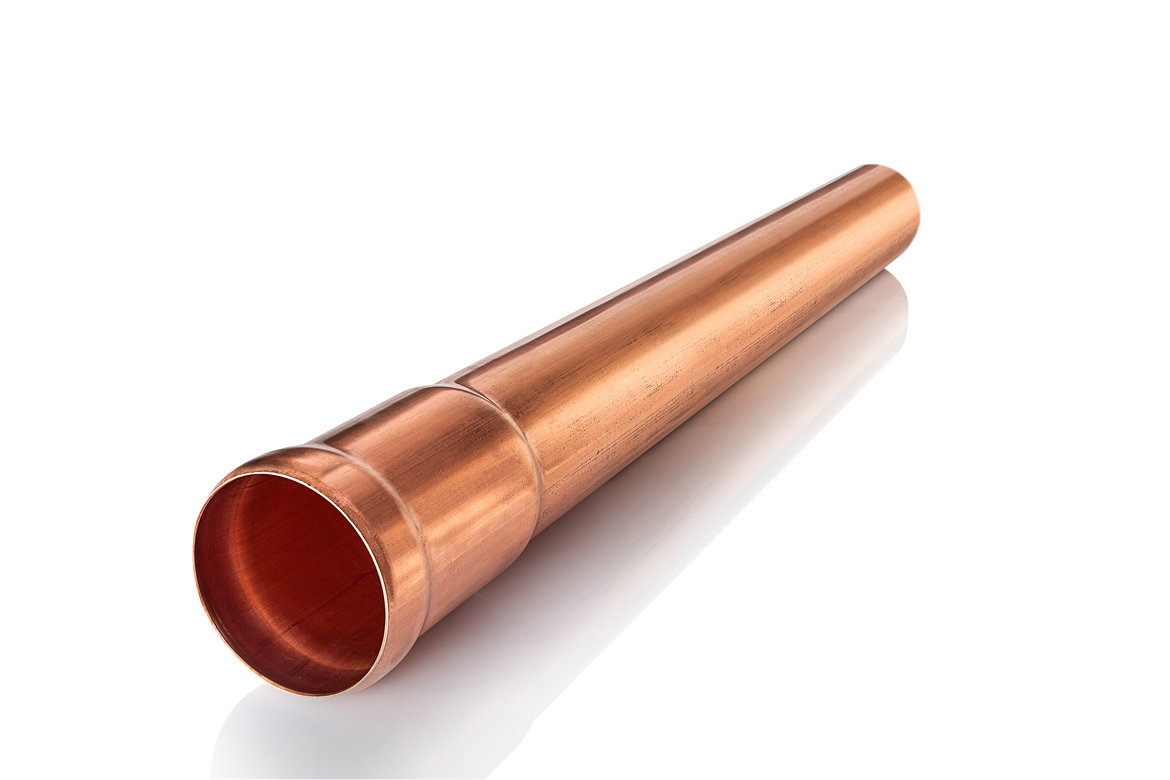

Rainwater standpipe 1.5 m - without cleaning lid

The rainwater standpipe protects against damage in areas prone to impact. As the connector from the downpipe and main sewage system, it withstands the greatest loads.

Back to overview

Show article numbers Hide article numbers

Material / Nominal Size
Copper
Galvanised steel

70	80	100	125	150
		97621 ² GRÖMO Rainwater standpipe 1.5 m - without cleaning lid Copper (97621) Description: Rainwater standpipe 1.5 m - without cleaning lid Material: Copper Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97621 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 10,1 Norm: DIN EN 1123-2:2007-12	97622 ² GRÖMO Rainwater standpipe 1.5 m - without cleaning lid Copper (97622) Description: Rainwater standpipe 1.5 m - without cleaning lid Material: Copper Nominal size (mm): 125 Manufacturer: GRÖMO Article No.: 97622 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 20,7 Norm: DIN EN 1123-2:2007-12
97612 ² GRÖMO Rainwater standpipe 1.5 m - without cleaning lid Galvanised steel (97612) Description: Rainwater standpipe 1.5 m - without cleaning lid Material: Galvanised steel Nominal size (mm): 70 Manufacturer: GRÖMO Article No.: 97612 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 4,1 Norm: DIN EN 1123-2:2007-12	97613 ¹ GRÖMO Rainwater standpipe 1.5 m - without cleaning lid Galvanised steel (97613) Description: Rainwater standpipe 1.5 m - without cleaning lid Material: Galvanised steel Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 97613 Version: Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 6,7 Norm: DIN EN 1123-2:2007-12	97614 ² GRÖMO Rainwater standpipe 1.5 m - without cleaning lid Galvanised steel (97614) Description: Rainwater standpipe 1.5 m - without cleaning lid Material: Galvanised steel Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97614 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 10,1 Norm: DIN EN 1123-2:2007-12	97615 ² GRÖMO Rainwater standpipe 1.5 m - without cleaning lid Galvanised steel (97615) Description: Rainwater standpipe 1.5 m - without cleaning lid Material: Galvanised steel Nominal size (mm): 125 Manufacturer: GRÖMO Article No.: 97615 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 20,7 Norm: DIN EN 1123-2:2007-12	97616 ² GRÖMO Rainwater standpipe 1.5 m - without cleaning lid Galvanised steel (97616) Description: Rainwater standpipe 1.5 m - without cleaning lid Material: Galvanised steel Nominal size (mm): 150 Manufacturer: GRÖMO Article No.: 97616 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 33,9 Norm: DIN EN 1123-2:2007-12

¹ Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe
² Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe

Ask question about product 3D - view Technical data sheet Construction detail DXF Construction detail DWG ZVDH Zert Green Building Text for invitation to tender

Product photo may deviate slightly from actual product in individual cases.
Technical specs subject to change.
