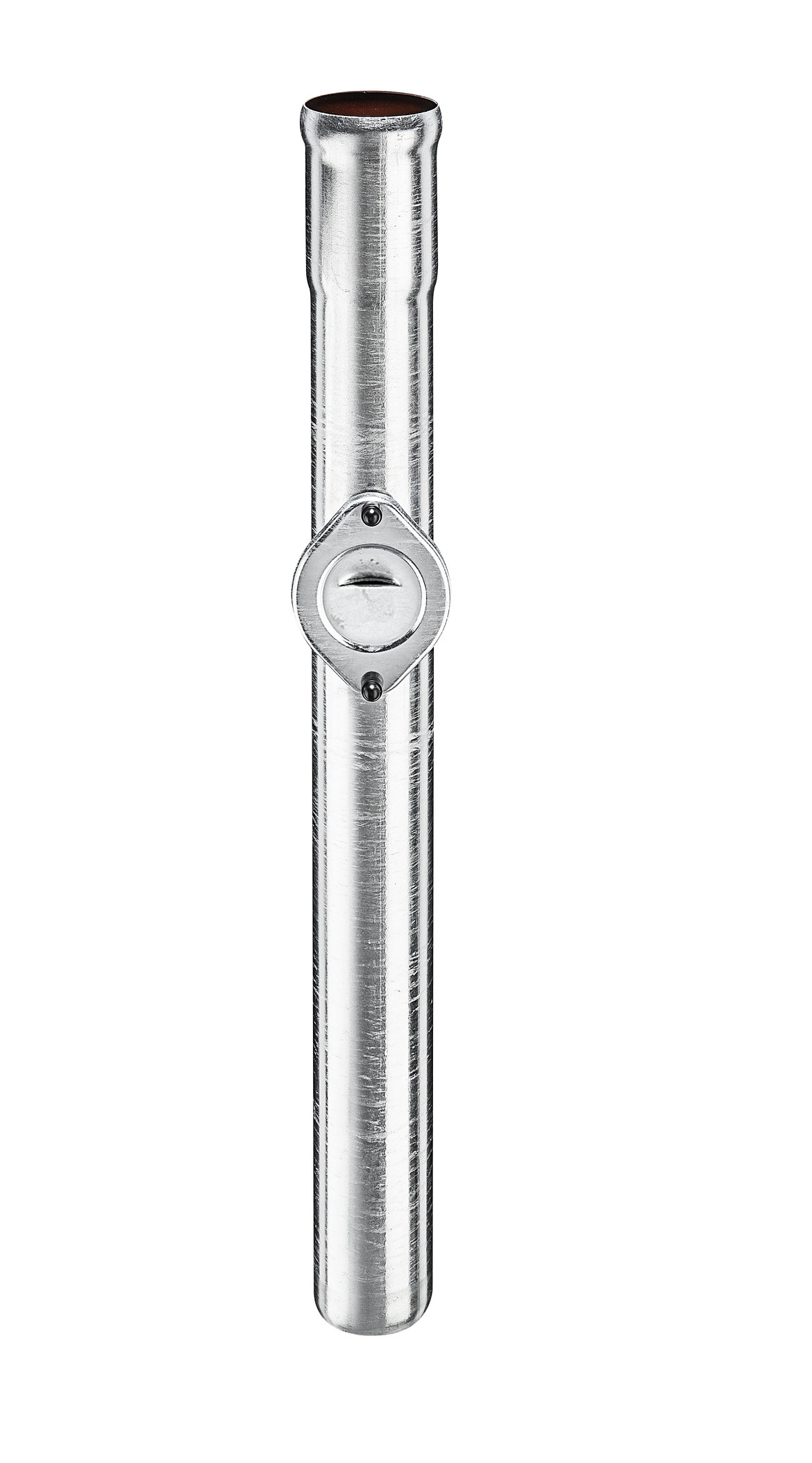

Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid
The rainwater standpipe protects against damage in areas prone to impact. As the connector from the downpipe and main sewage system, it withstands the greatest loads. Thanks to the cleaning opening, there is more elbow room for cleaning. The safety overflow stops the downpipe from filling completely when plugged, and thus prevents contamination on the façade.
Back to overview
| Material / Nominal Size |
|---|
| Galvanised steel |
| 70 | 80 | 100 | 125 | 150 |
|---|---|---|---|---|
|
97645
2
GRÖMO Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid
Galvanised steel (97645) Description: Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid Material: Galvanised steel Nominal size (mm): 70 Manufacturer: GRÖMO Article No.: 97645 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 4,1 Norm: DIN EN 1123-2:2007-12 |
97646
1
GRÖMO Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid
Galvanised steel (97646) Description: Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid Material: Galvanised steel Nominal size (mm): 80 Manufacturer: GRÖMO Article No.: 97646 Version: Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 6,7 Norm: DIN EN 1123-2:2007-12 |
97647
2
GRÖMO Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid
Galvanised steel (97647) Description: Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid Material: Galvanised steel Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97647 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 10,1 Norm: DIN EN 1123-2:2007-12 |
97648
2
GRÖMO Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid
Galvanised steel (97648) Description: Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid Material: Galvanised steel Nominal size (mm): 125 Manufacturer: GRÖMO Article No.: 97648 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 20,7 Norm: DIN EN 1123-2:2007-12 |
97649
2
GRÖMO Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid
Galvanised steel (97649) Description: Rainwater standpipe 1.0 m - with safety overflow in the cleaning lid Material: Galvanised steel Nominal size (mm): 150 Manufacturer: GRÖMO Article No.: 97649 Version: Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe Drainage capacity (l/s): 33,9 Norm: DIN EN 1123-2:2007-12 |
- 1 Without seal element, with preformed connector, outer diameter 102 mm. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe
- 2 Without seal element. Compatible connectors are available for connecting to sewer pipe and acoustic transmission line cast iron pipe
Spare part: Cleaning lid with safety overflow for rainwater standpipe
| Material / Nominal Size |
|---|
| Galvanised steel |
| 100 |
|---|
|
97574
GRÖMO Cleaning lid with safety overflow for rainwater standpipe Galvanised
steel (97574) Description: Cleaning lid with safety overflow for rainwater standpipe Material: Galvanised steel Nominal size (mm): 100 Manufacturer: GRÖMO Article No.: 97574 |
